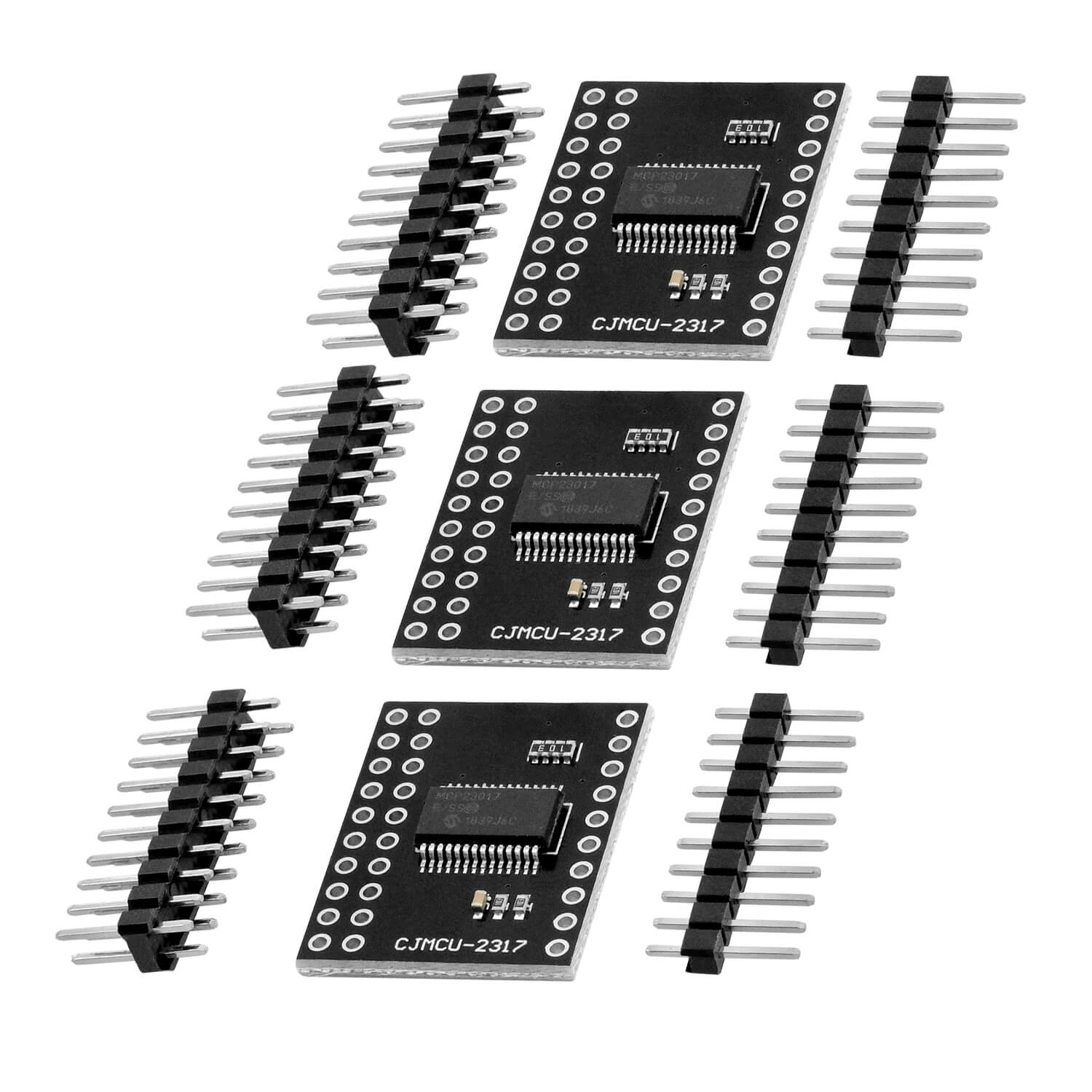

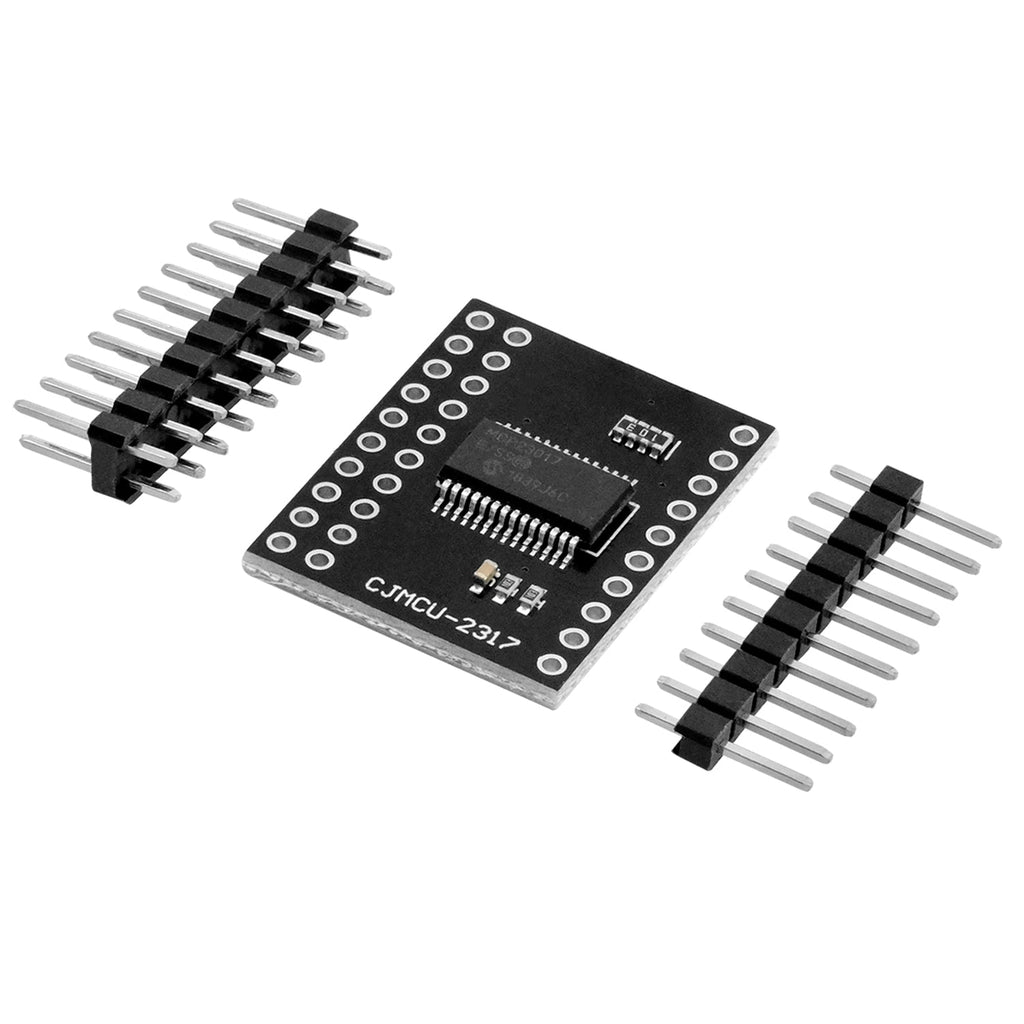

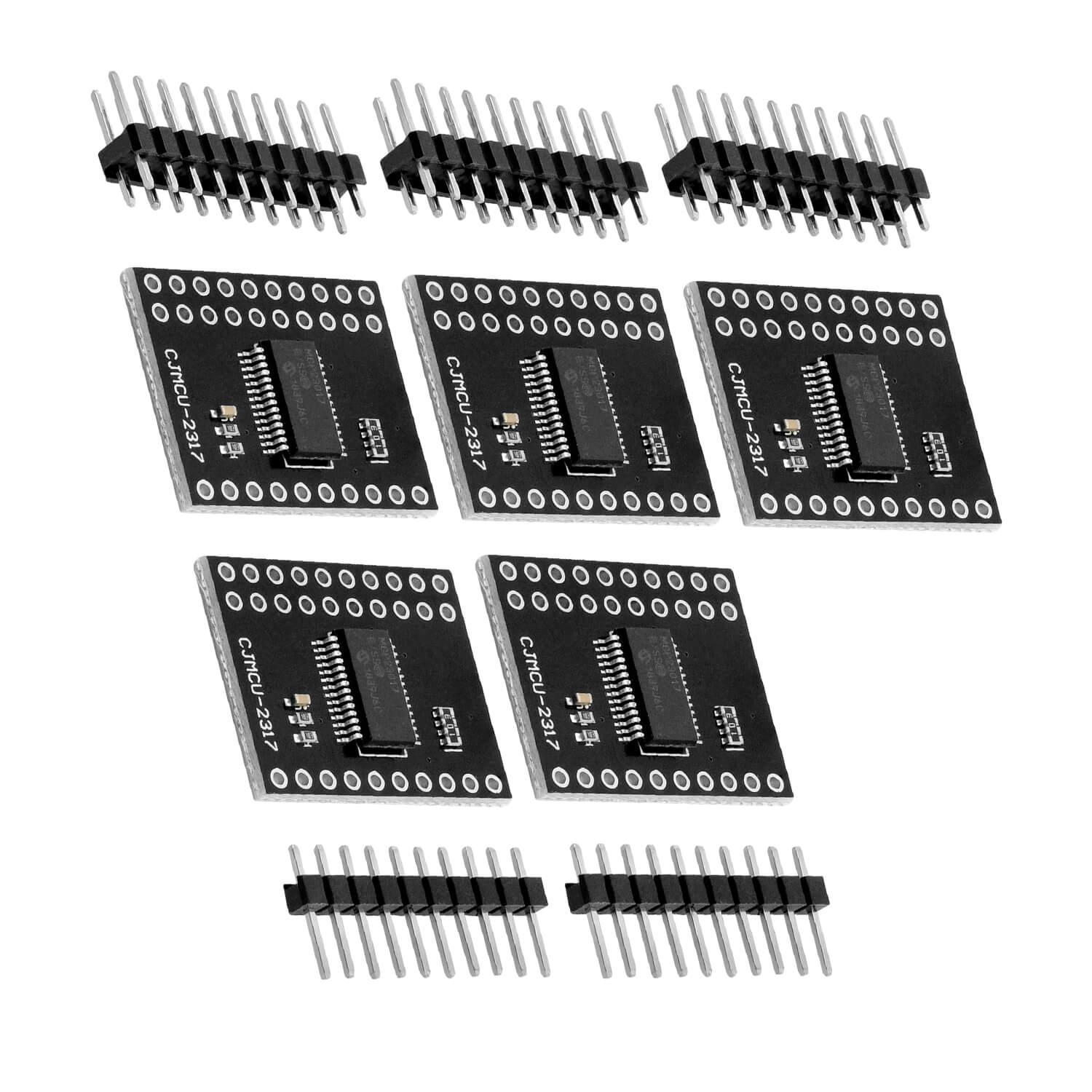

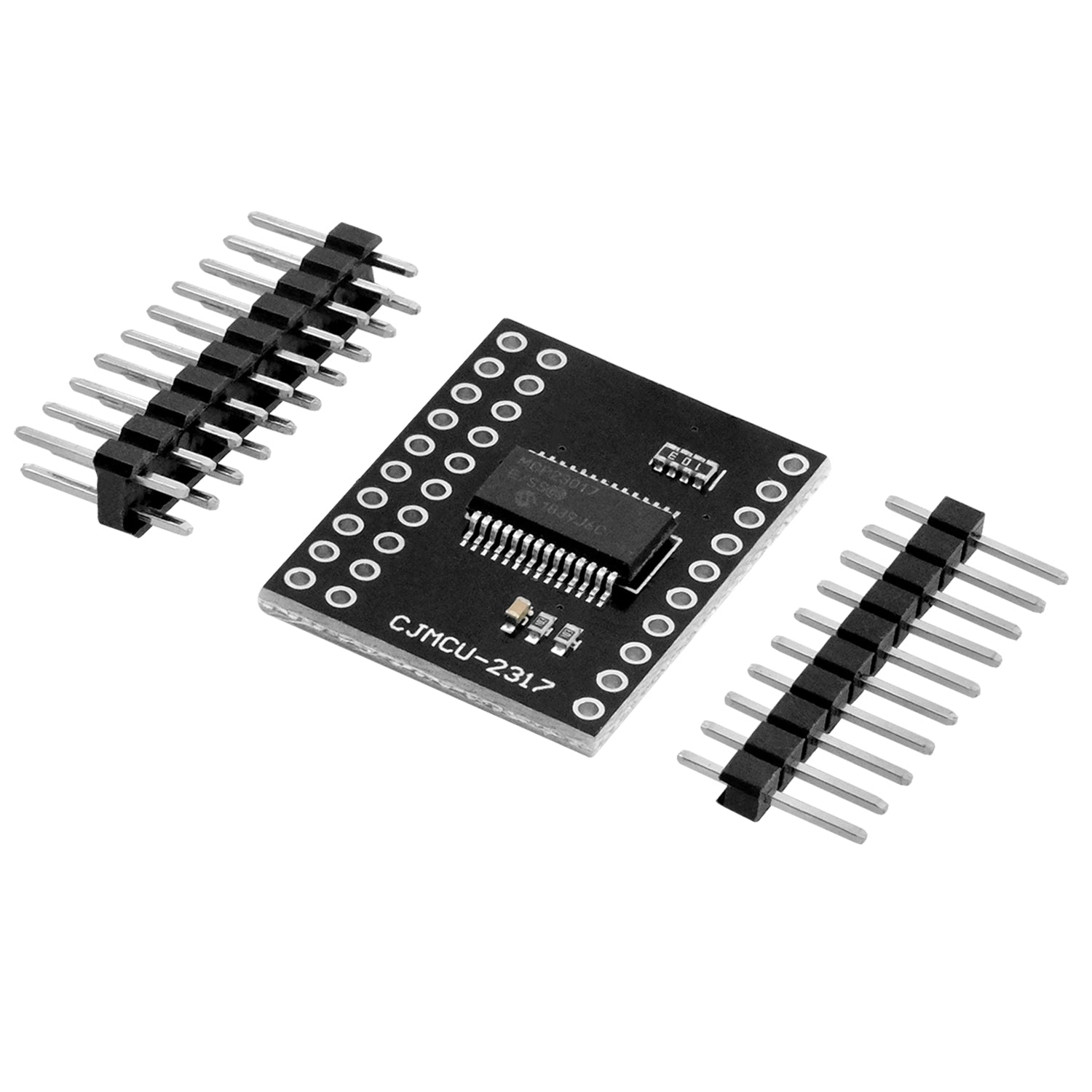

MCP23017 serial interface module compatible with Arduino

Select quantity discount: 1x Set
Sale price€7.99

Tax included

✔️ This Azdelivery Port Expander has two opposite programmable interrupt source outputs and three hardware addresses that enable up to eight devices on the same module.
✔️ With the MCP23017, 16-bit parallel data can be converted into I2C data and vice versa.
✔️ This I/0 Expander has two 8-bit E/A ports (by default as an input) that are able to convert 16-bit parallel data into I2C data and vice versa.
✔️ High-speed I2C interface: 100kHz, 400kHz or 1.7 MHz

Important downloads and links


  • High-speed I2C interface: 100kHz, 400kHz or 1.7 MHz
  • Configurable interrupt output spins: configurable as an active high, active low or open drain
  • Configurable interruption source: interrupt-on change made of configured register, default settings or PIN changes
  • Low standby current: 1UA (max.)
  • Max. Sensification current: up to 20mA per I/O-PIN
  • Polarity reversal register for configuring the polarity of the input sports data
  • External reset receipt
  • Operating tension: from 2.7V to 5.5V

Welcome to the Azdelivery family! Here you will find high quality products for your projects with Raspberry PI. We are pleased to be able to offer you a number of application examples, complete installation instructions, e-books, libraries and personal support.

AZ-Delivery: Your microelectronics expert!
