Product Description
Product details:

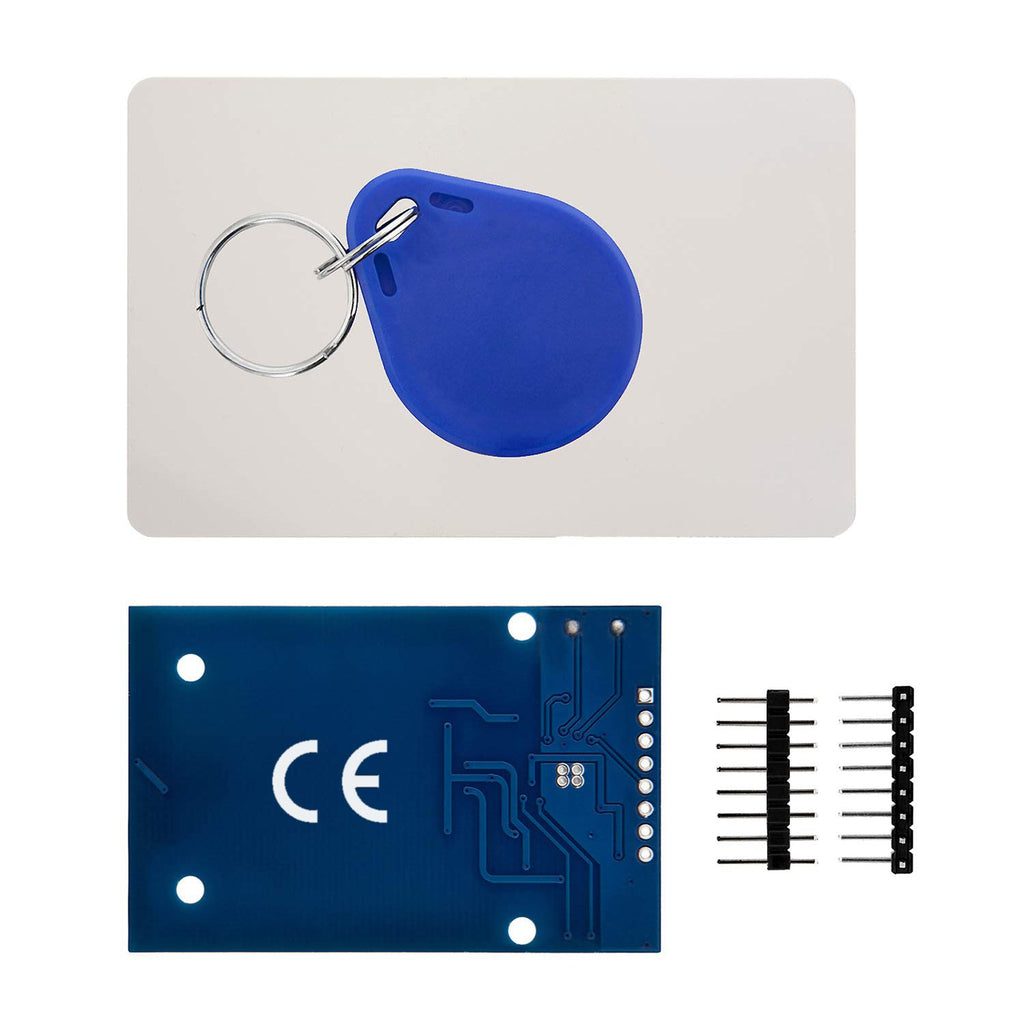

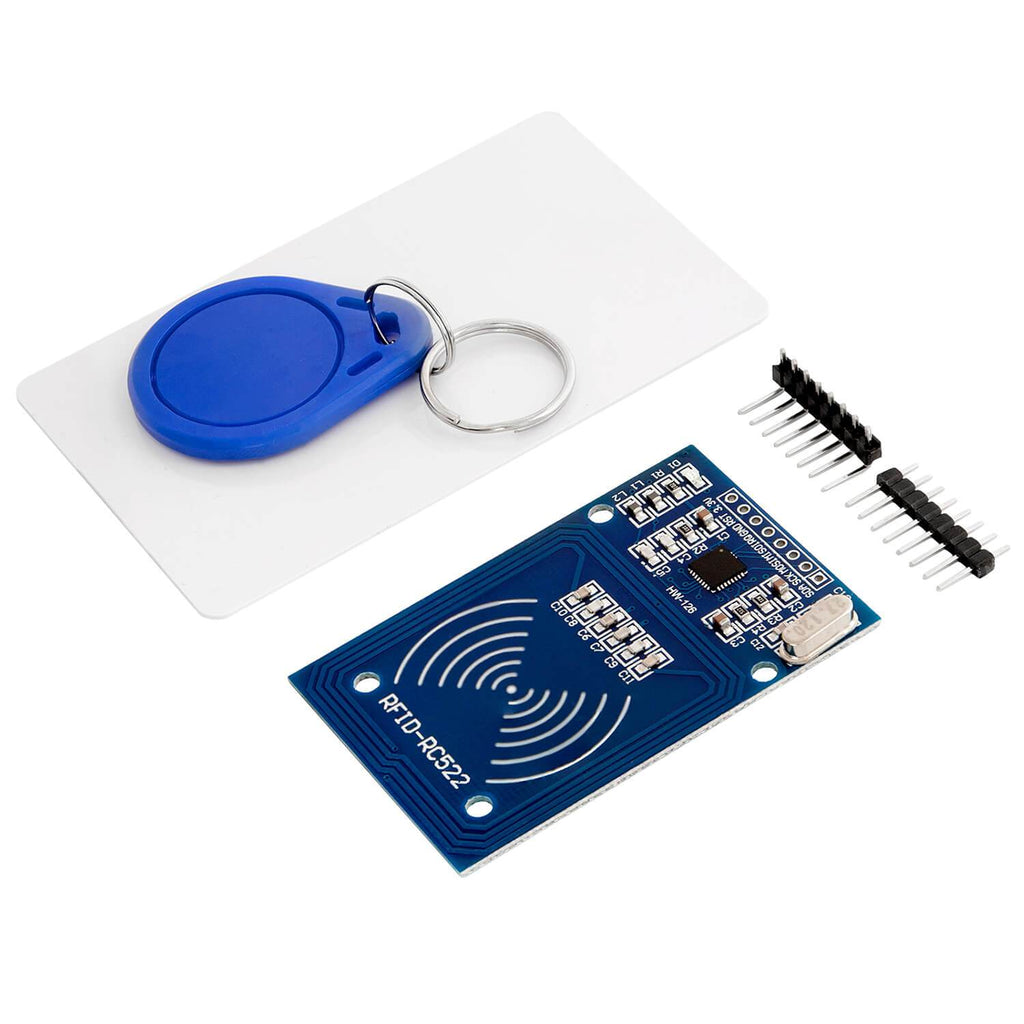

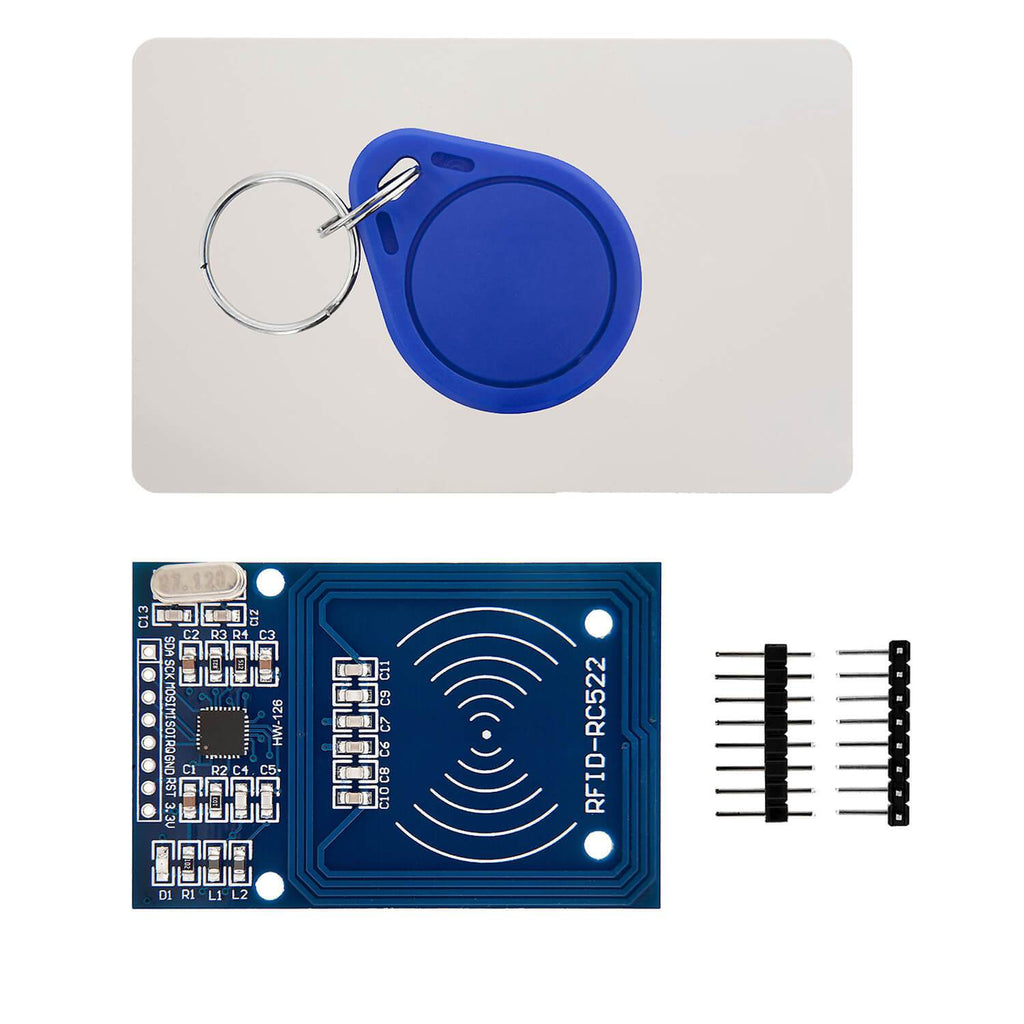

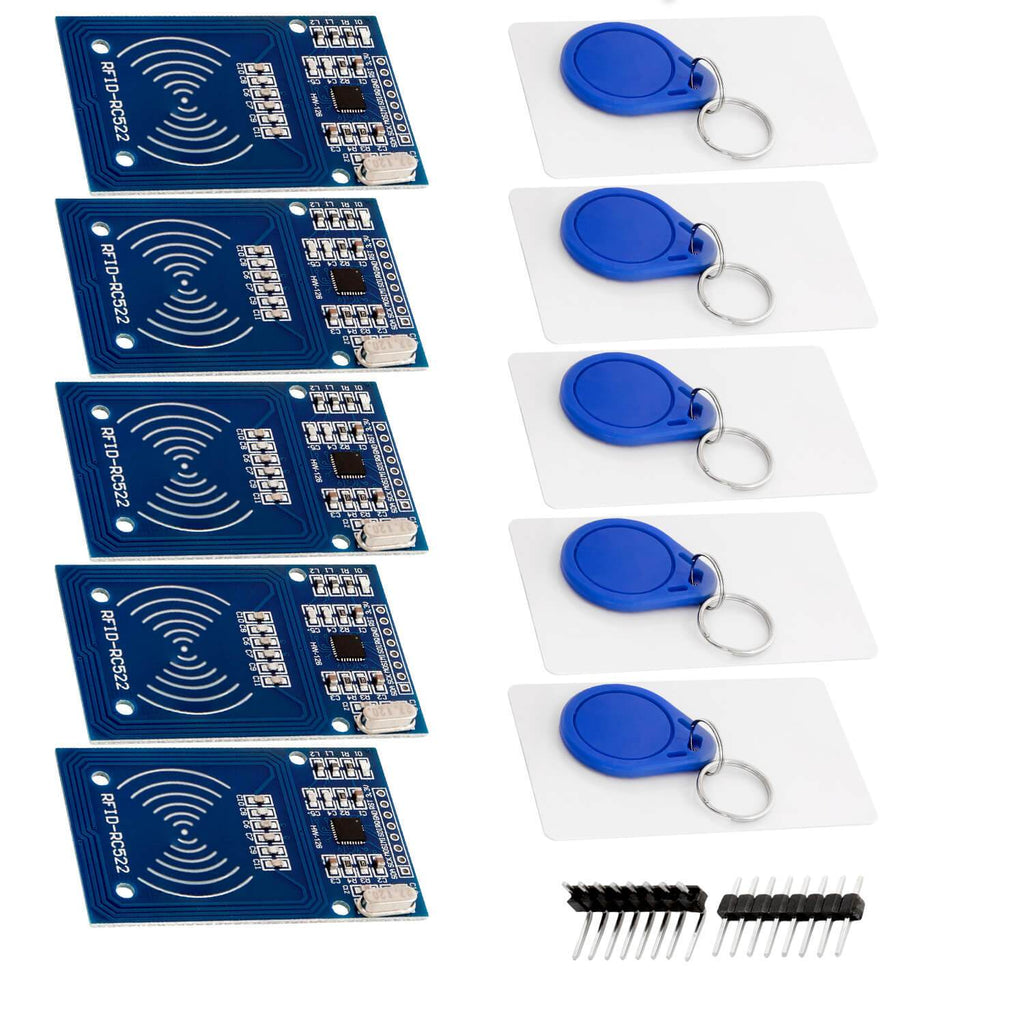

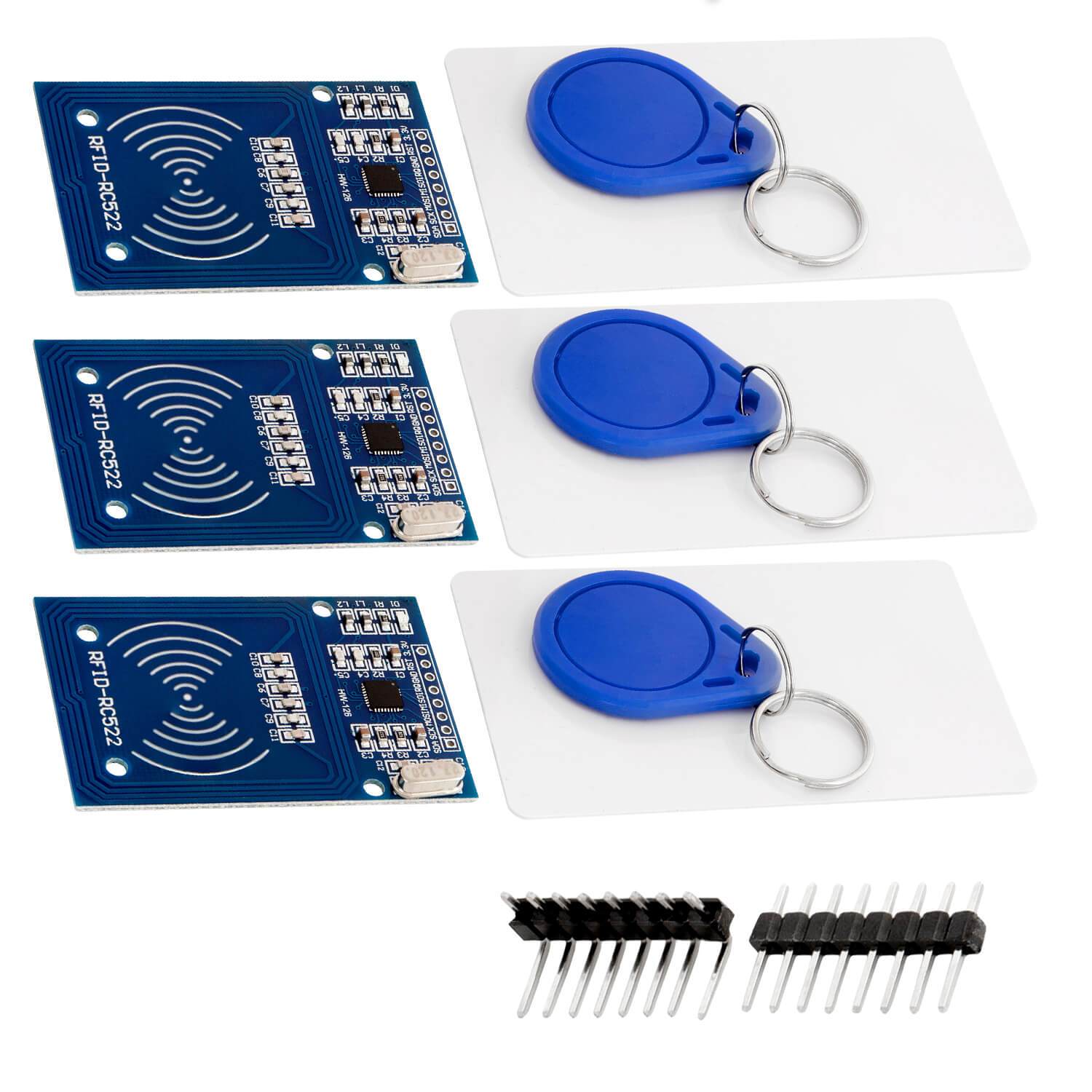

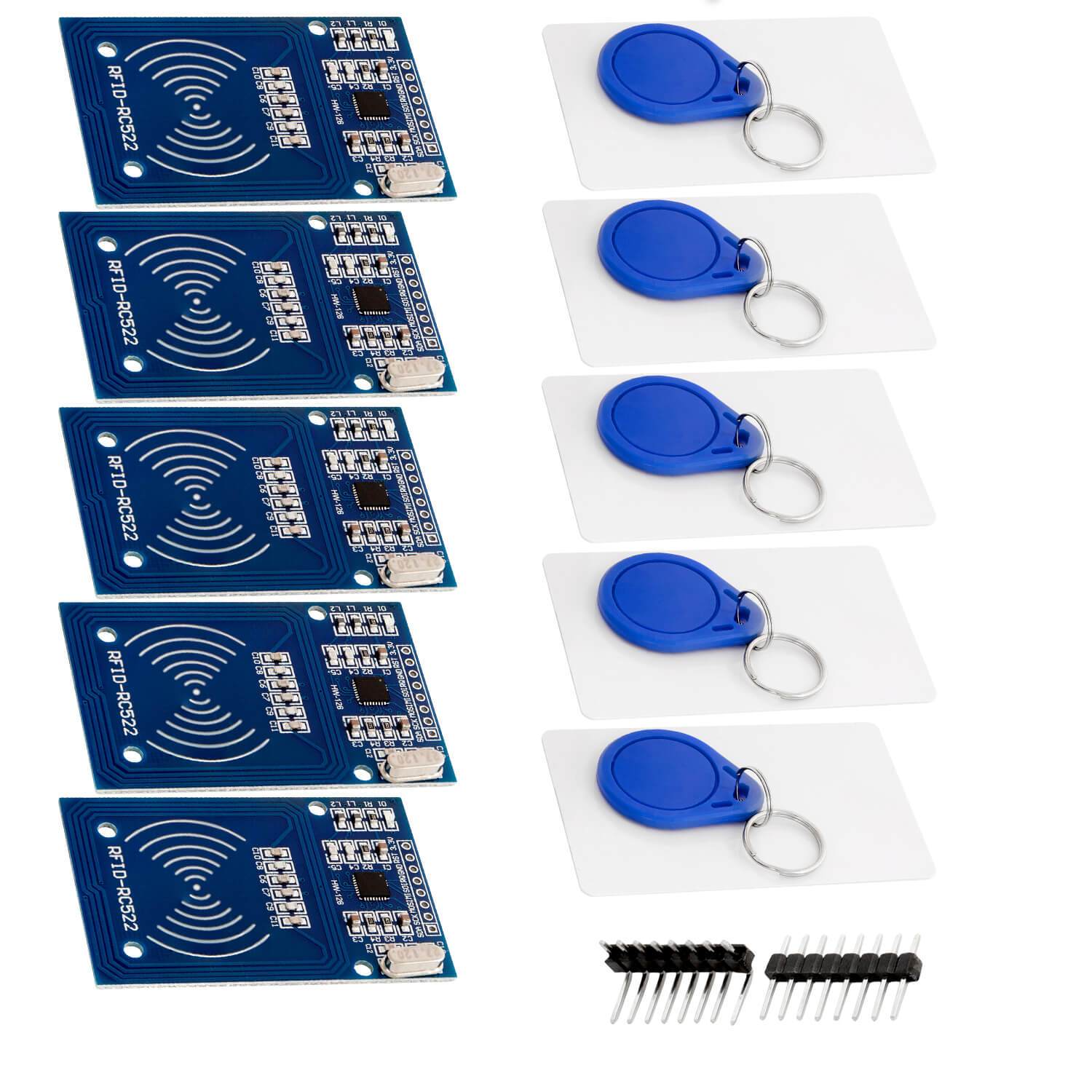

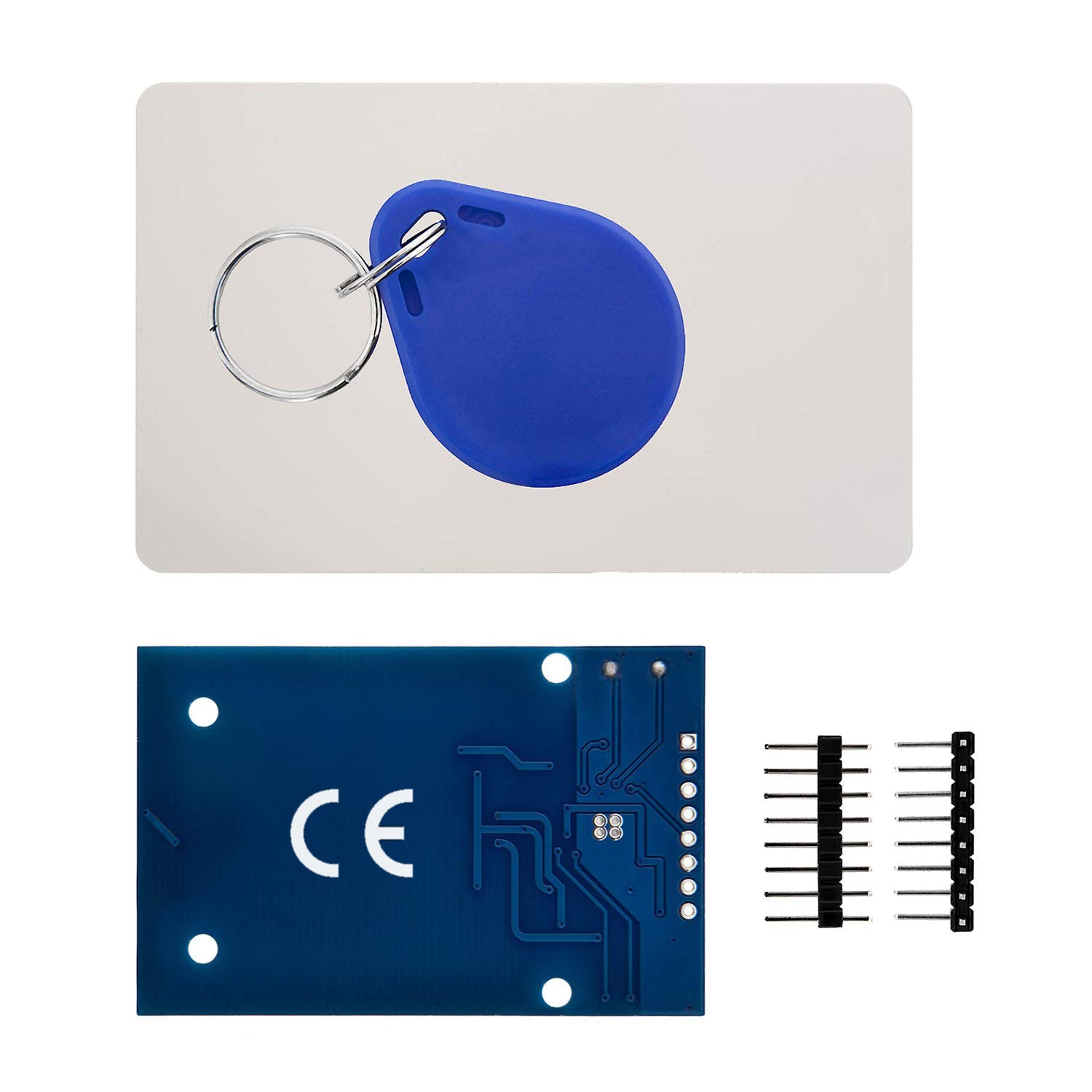

RFID kit RC522 with MIFARE transponder and RFID card including e-book for download, which simplifies the beginning very much especially for beginners. The RFID RC522 module is based on the Philips MF522-AN board and is delivered together with a S50 card (13.56MHz), a S50 transponder / key fob and two matching pin headers.

Particularities
- Thanks to the contactless reader and writer card chip and the unique combination of functions and applications in the new technologies: Automation and Artificial Intelligence.
- No batteries needed: are activated by the reader's power source.
- This means that tags can be very small - so small that they can be embedded in miniature devices.
Technical specifications
Chip | Mfrc522 |
Dimensions | 40 x 60mm |
Operating frequency | 13.56MHz |
Reading and writing spacing | <10 cm |
Communication | SPI interface |
Maximum data transfer rate | 10Mbit/s |
Operating current | 13-26MA / 3.3V |
Dormitory | 10-13MA / DC 3.3V |
Operating temperature range | -20-80 degrees Celsius |
Storage temperature range | -40-85 degrees Celsius |

Software & databases
It is an efficient way to identify individual items electronically. The ID can be linked to software and databases.

Quick start guide
When buying one of our high-quality products, you will also receive an inclusive e-book for a quick introduction to the world of microelectronics.
