Description
This test tool is ideal for testing I2C or SPI modules and other 6-pin modules. Any 6-pin module with a pin pitch of 2.54mm is suitable. This means that any common display, sensor or other device can be tested. Especially the SPI compatibility makes this tool very useful. Features: Operation sequence of this module test tool consists of each pin with 1A (max). The number of pins is: 1X6P.
Technical features:
- Number of pins: 1X6P
- Pin spacing: 2.54mm

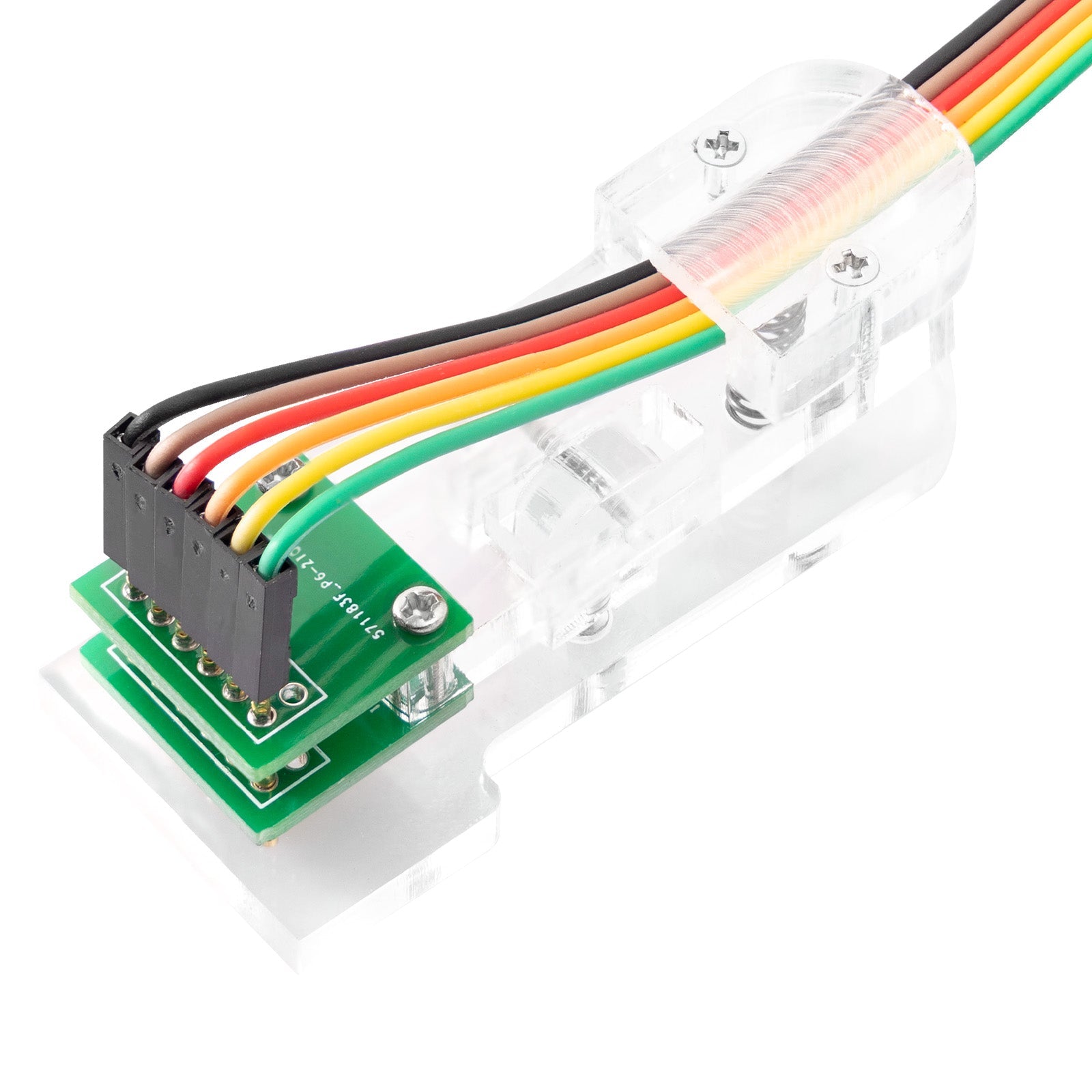

- Probe type: P75-E3 (cone), gold plated, long life
- Probe socket type: P75-E3
- Operating current: Each pin 1A (max)
- Operating voltage: 15V (max)
- Applicable pad for the probe: Feed-through pad, surface pad
Product Description

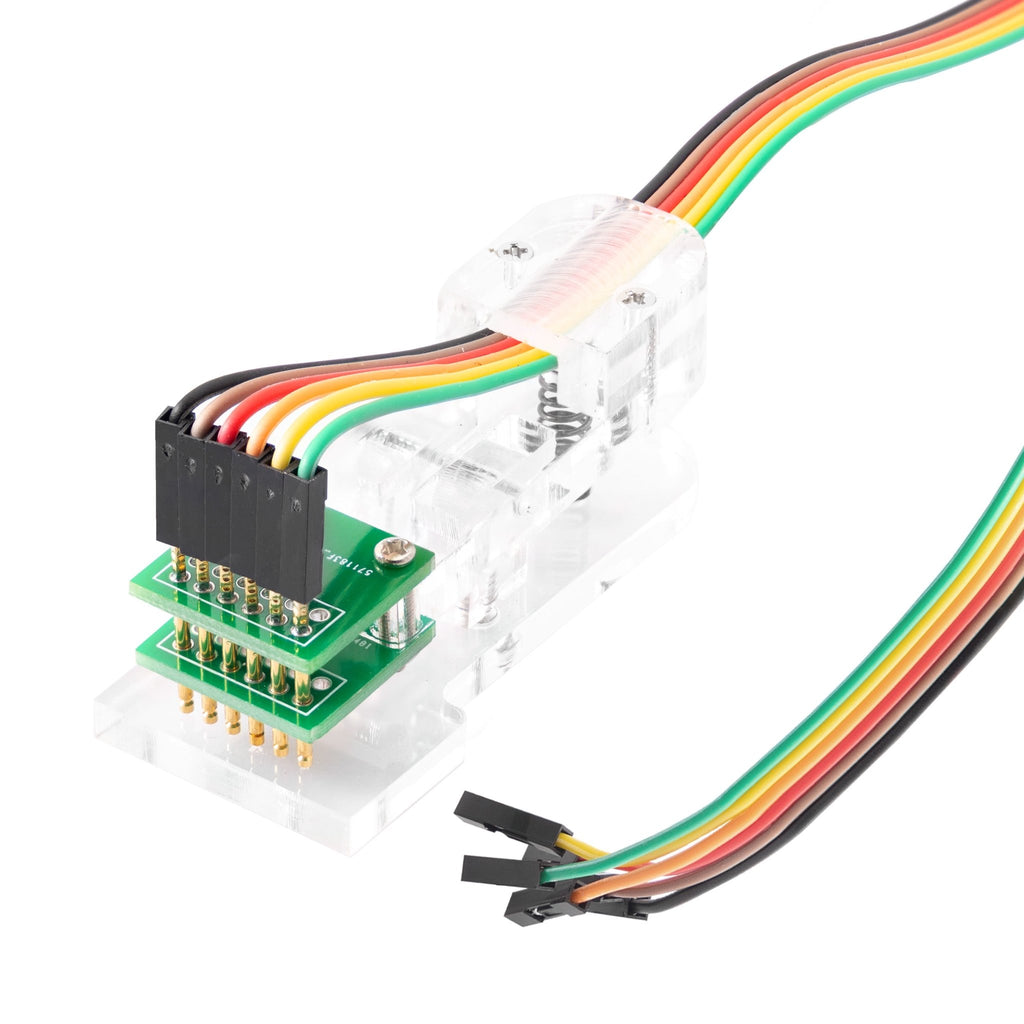

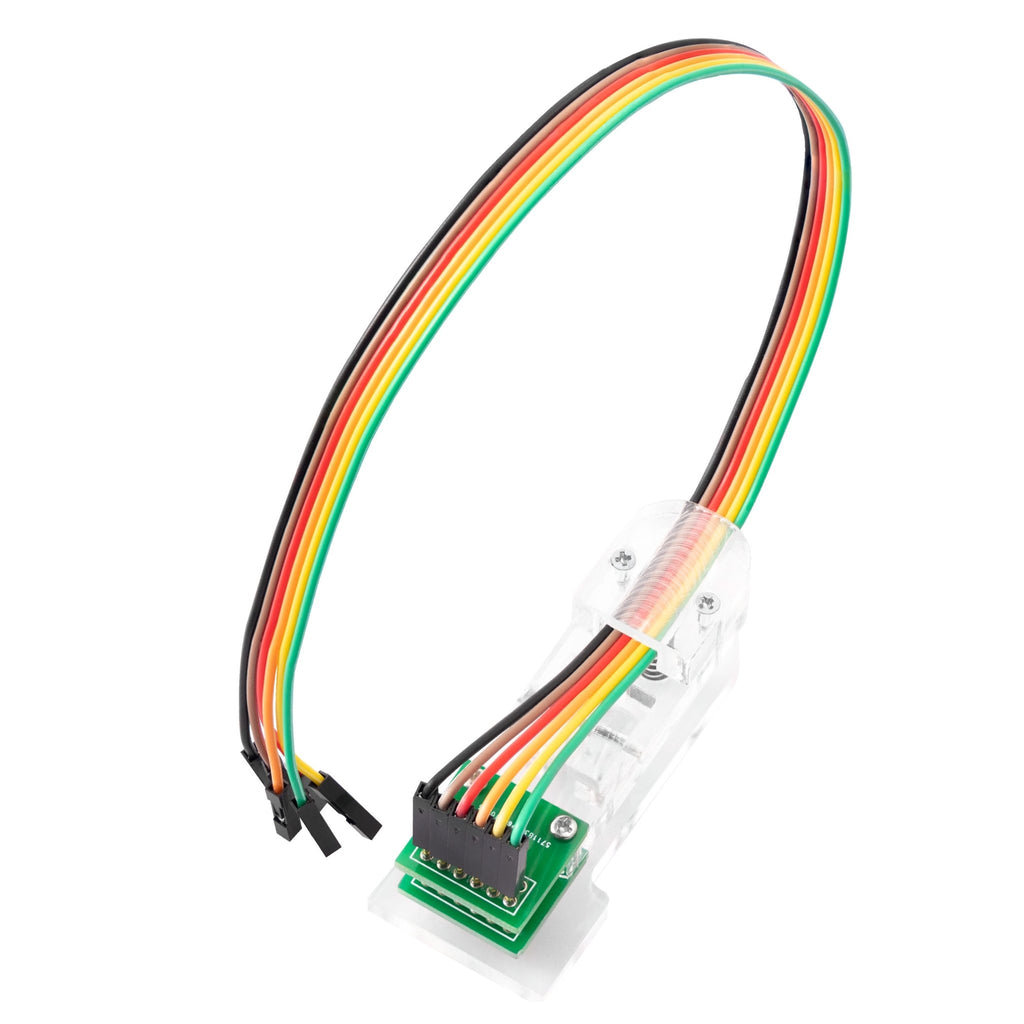

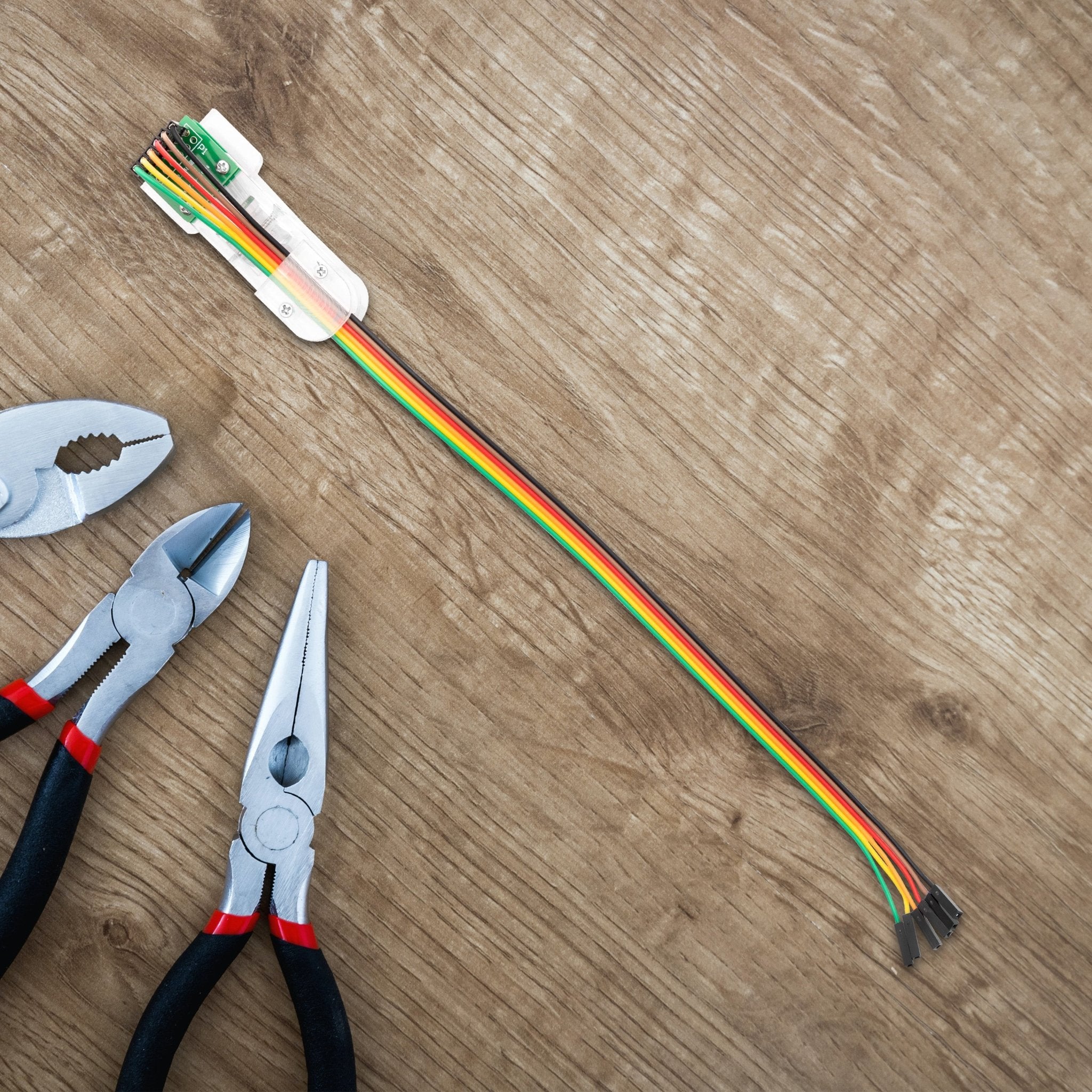

This is a test fixture for module test and code burning. It is suitable for modules and boards without solder pin headers and can be used to design code for various boards without solder pin headers.
Application
Use the test fixture to upload code for different solder boards.
