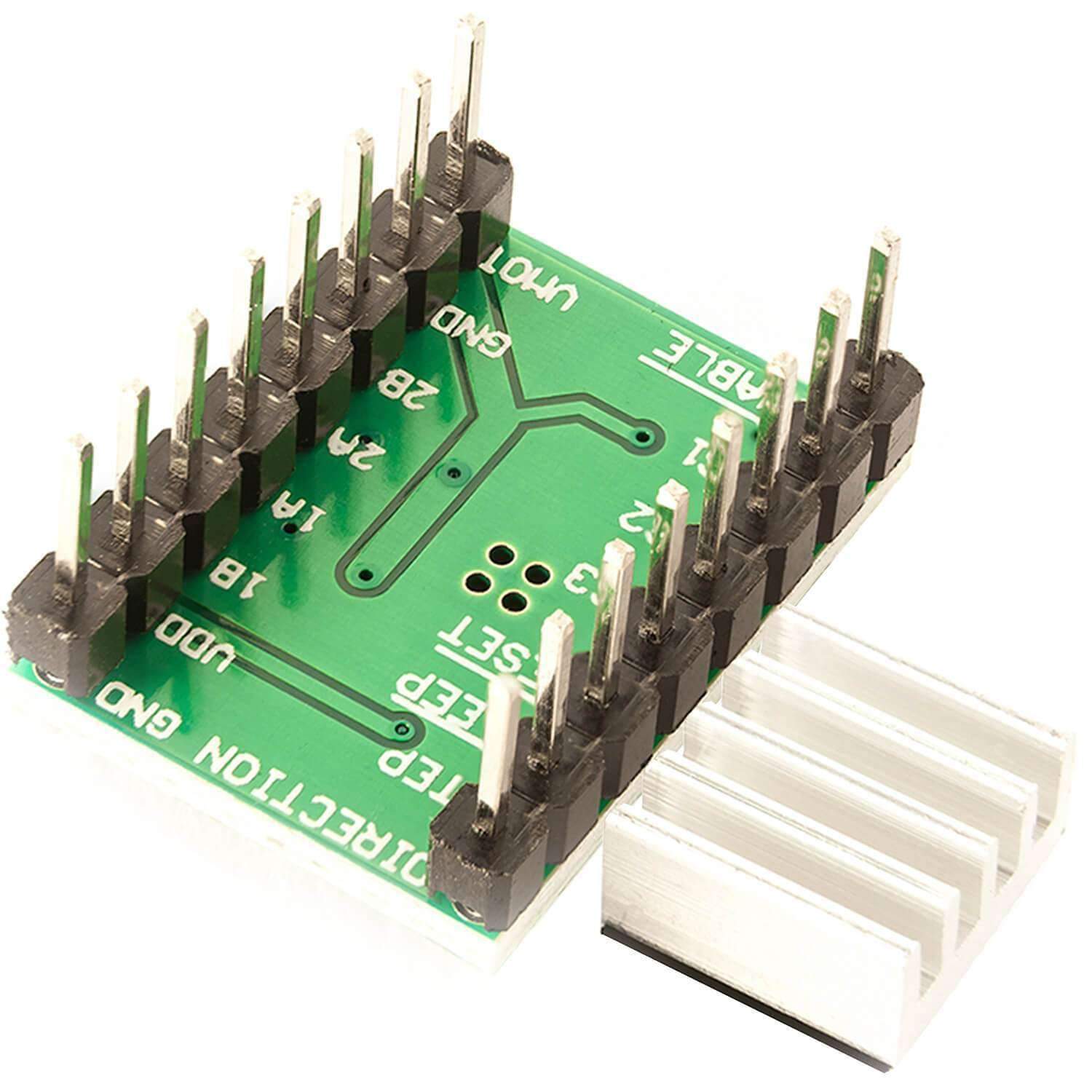

- ✔️ AZ-Delivery A4988 DMOS Stepper Motor Driver RepRap Ramps with Headers and Heatsink is ideal for stepper motors with phase current of 2A (e.g., the NEMA17 motors for 3D printers).
- ✔️ AZ-Delivery A4988 DMOS Stepper Motor Driver RepRap Ramps with Headers and Heatsink are 100 % compatible with RepRap Ramps.
- ✔️ A4988 DMOS Stepper Motor Drivers have simple step and direction control interface.
- ✔️ A4988 DMOS Stepper Motor Driver supports Microstepping up to 1/16 steps, adjustable current limit, overcurrent protection, over-temperature protection, up to max. 2 A per coil with cooling, operating voltage 8 V - 35 V.
- ✔️ This product includes an E-Book that provides useful information on how to begin your project, it helps with a quick setup and saves time on the configuration process. We provide an array of application examples, full installation guides and libraries.
- weitere Produktdetails

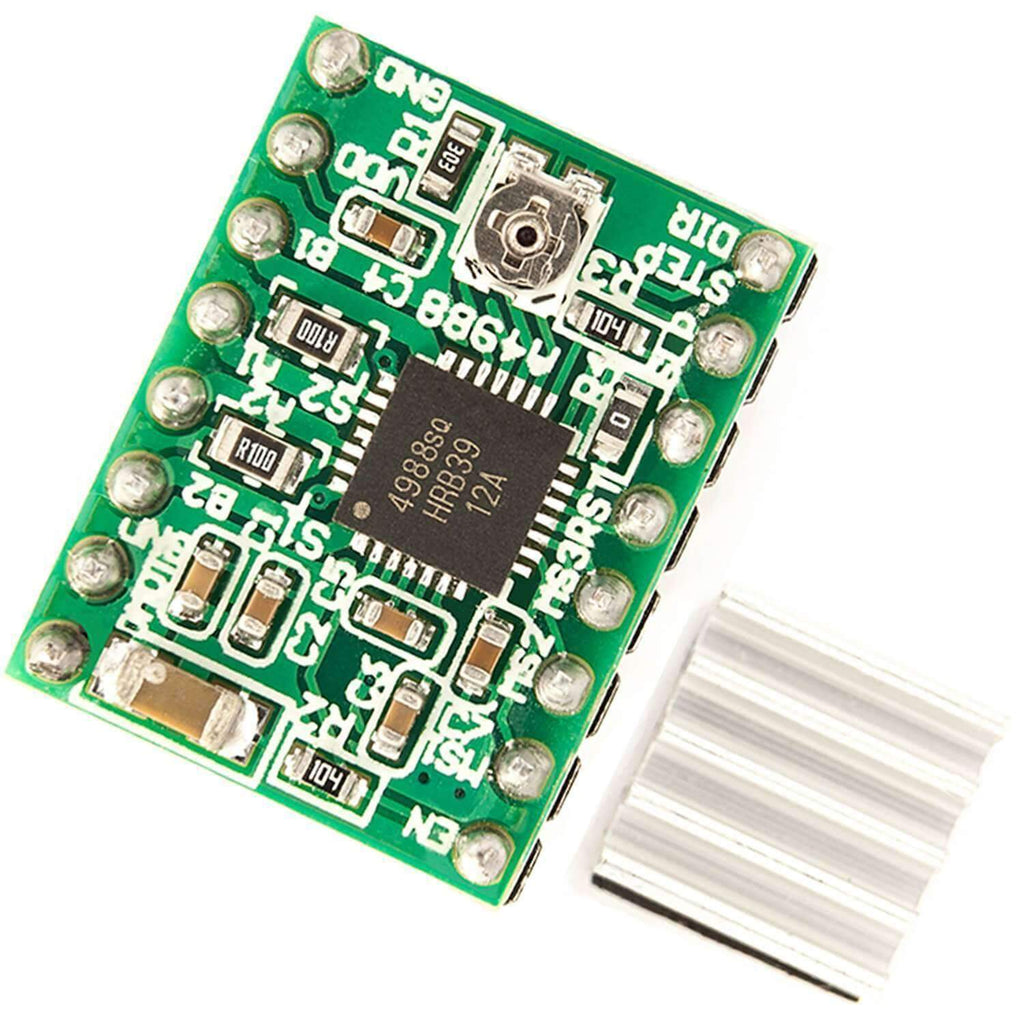

AZ-Delivery A4988 DMOS Stepper Motor Driver is a complete microstepping motor driver with built-in translator for an easy operation. A4988 DMOS Stepper Motor Driver is designed to operate bipolar stepper motors in full-, half-, quarter-, eighth-, and sixteenth-step modes, wth an output drive capaticity up to 35V and ±2A.
The A4988 includes a fixed off-time current regulator which has the ability to operate in Slow ot Mixed decay modes. The A4988 interface is an ideal fit for applications where a complex microprocessor is unavailable or is overburdened.
For top quality Raspberry Pi products etc, AZ-Delivery Vertriebs is your go to.
We provide an array of application examples, full installation guides, eBooks, libraries, and all-round assistance.
AZ-Delivery, your microelectronics expert!
