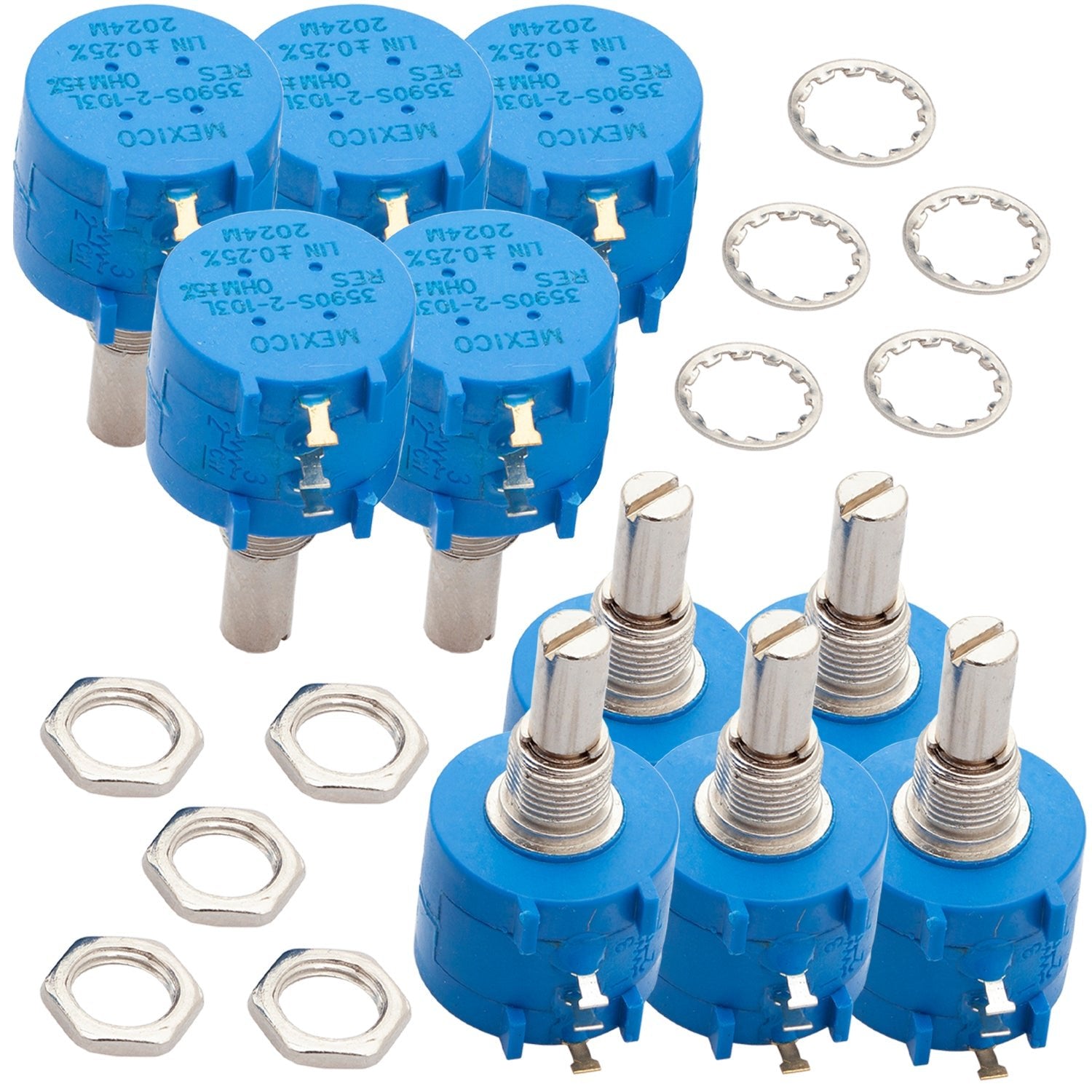

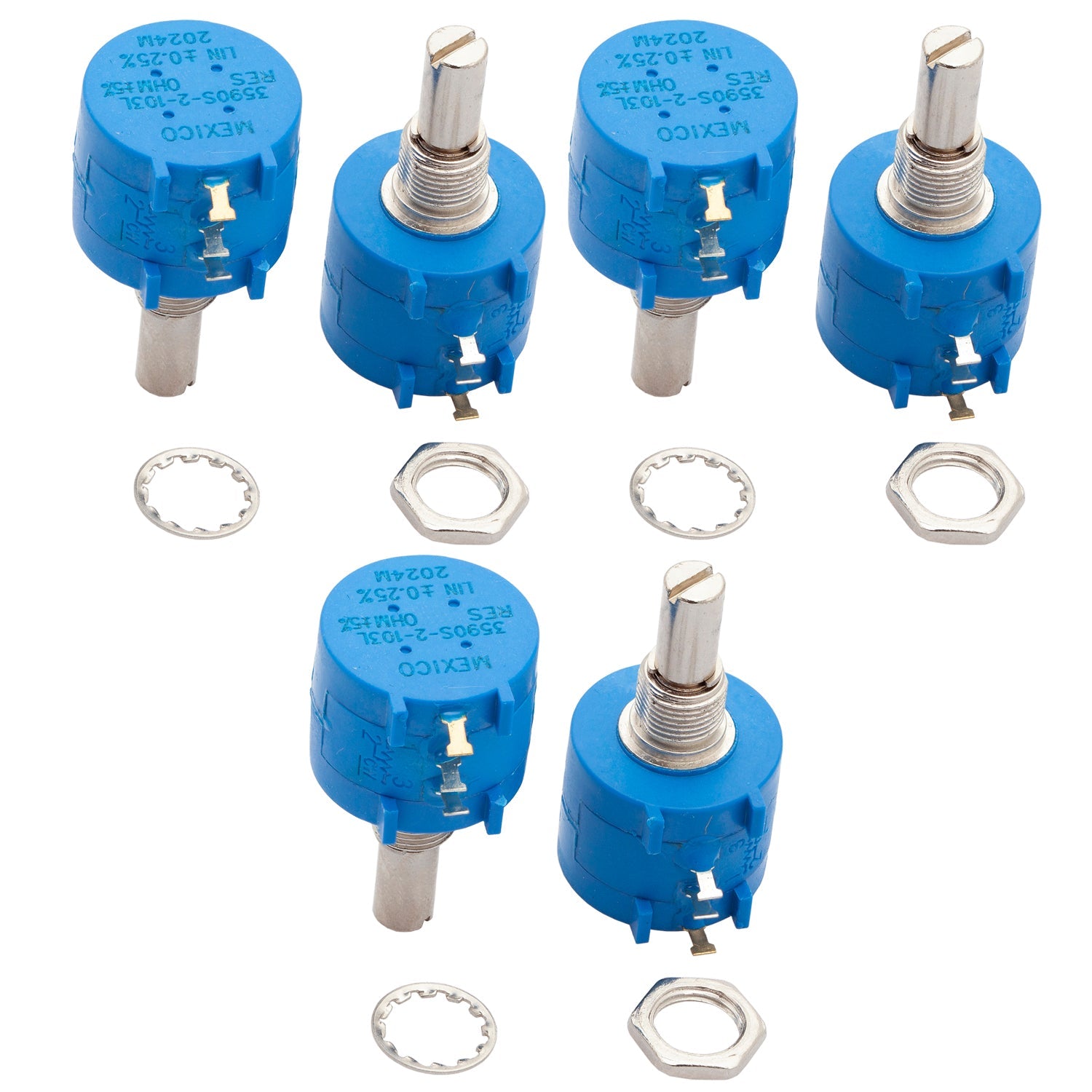

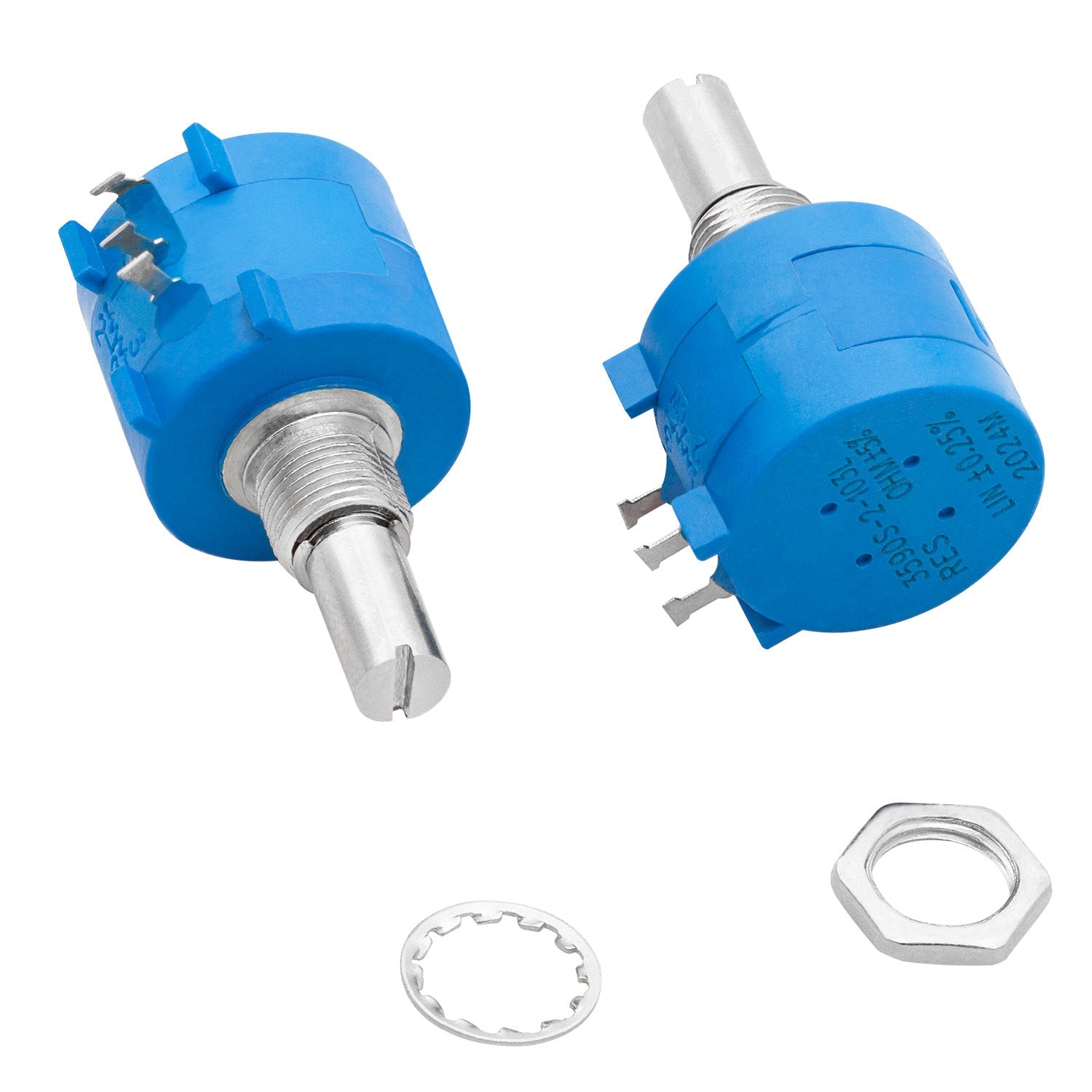

Multi-turn rotary potentiometer with protection resistor 3590S 100K ohm with adjustable resistance

Save €1.00

Variant: 1x Set
Sale price€7.49 Regular price€8.49

Tax included

✅This high-quality Multi-Turn Poti 3590S-2-103L has a high resistance tolerance that is sufficient for versatile projects.
✅ Thanks to the fine materials, this potentiometer set is versatile and long-lasting. It has a lifetime of 1000 hours. of 1 million rotations
✅ The plastic housing helps with storage during transport and also at home in the accessory set.
✅ The combination of carbon foil and metal ensures the resistance of the product and makes it possible to use it in numerous projects.

Important downloads and links


Independent linearity accuracy makes this module a good choice for your electronics project. High precision combined with modern and user-friendly design makes this product easy to use.

Special Features:

  • Resistance: 100K Ω
    Windings: 10 windings
    Shaft diameter: 6.3mm, mounting hole: 10mm
    Resistance tolerance: ±5%, independent linearity accuracy: ±0.25%.
    Lifetime: 1,000,000 revolutions

Technical data

Revolutions 10
Lifetime 1.000.000 revolutions
Power 2W
Resistance value 100K Ohm
Resistor tolerance ± 5%
Linearity ± 0,25%
Shaft diameter 6mm/0.24"
Thread diameter 9mm/0.35"
Total length 40mm/1.6"
Lifetime load 1000 hours
Mechanical angle 3600 ° ± 10 °
Operating temperature range -55 ° - 125 °
Size (without hearing wave) 22x1 9mm/0.9 "x 0.7"(DxH)

Possible risks:

The potentiometer has an extreme durability. However, it should not be stored in rooms with extremely hot temperatures.
