D1 Mini NodeMcu with ESP8266-12F with USB-C connection WLAN modules CH340G Lua compatible with Arduino


Style: 1x set
Price:
Sale price€7.99

Tax included

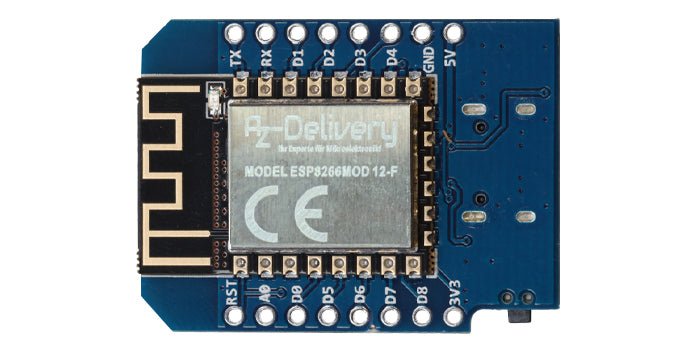

✅ The AZ-Delivery D1 mini is a mini NodeMcu WiFi board based on an ESP-8266-12F with USB-C port.
✅ This wireless board contains 9 digital input/output pins, and has interrupt/pwm/I2C/1-wire interfaces
✅ Thanks to its ultra-compact design, the AZ-Delivery D1 Mini NodeMcu with ESP8266-12F WLAN module very easy to store decentrally
✅ The AZ-Delivery Wireless D1 mini development board is D1 mini compatible and can be programmed in the Arduino IDE

Important downloads and links

Description

The AZ-Delivery D1 Mini NodeMcu with ESP8266-12F WLAN Module CH340 Lua is equipped with a powerful ESP8266 processor and integrated WLAN. This NodeMcu is particularly popular due to its small dimensions.

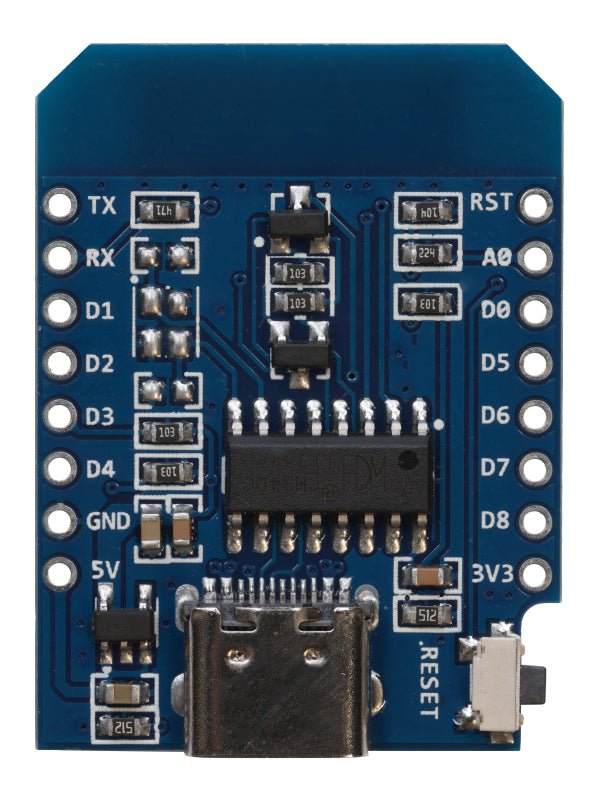

A CH340 chip with USB-C socket is on board for easy and convenient programming.

This compact development board can be used for various applications and projects due to its light weight and design. For example, it can measure air pressure, temperature and humidity with many of our sensors using its own web server via a WLAN connection.

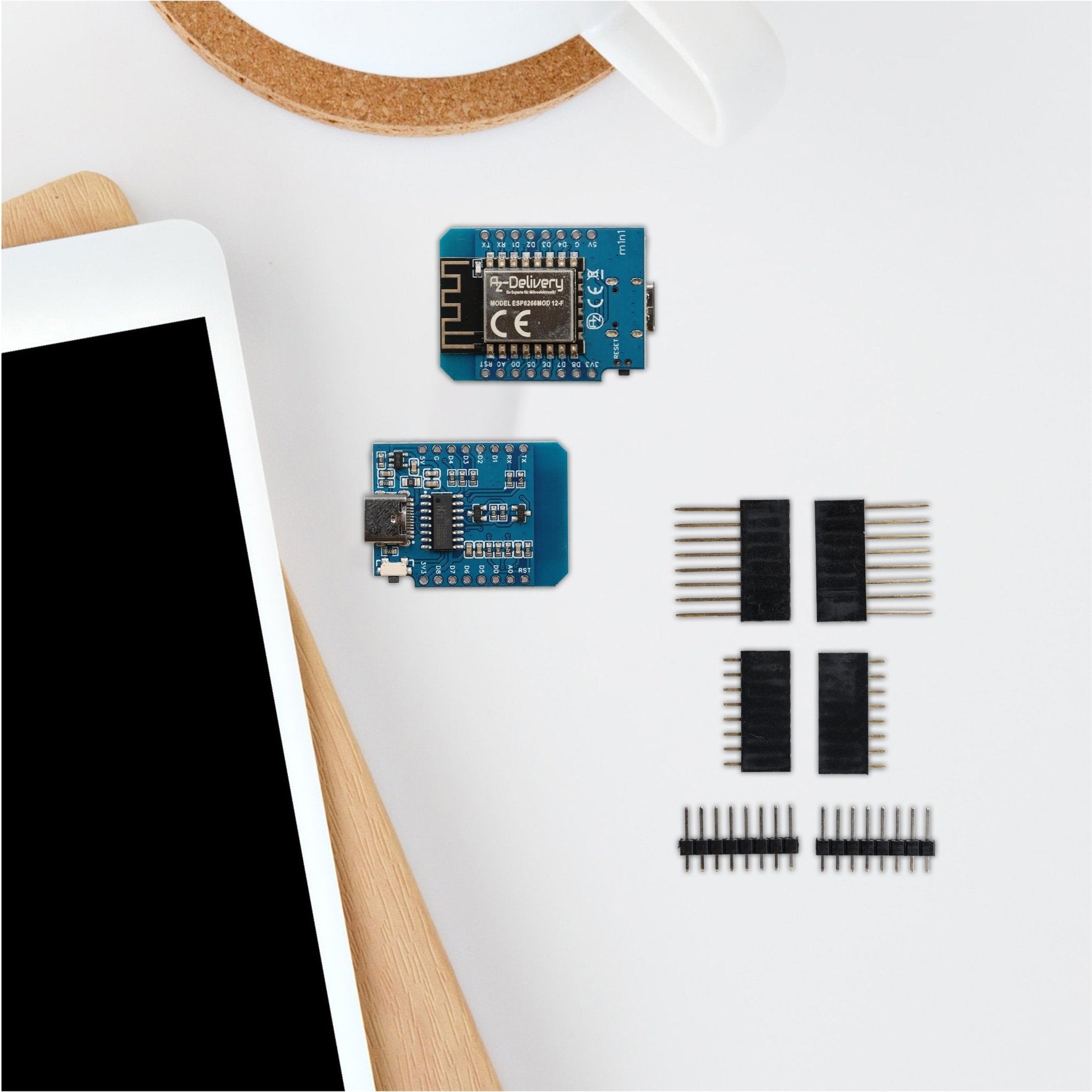

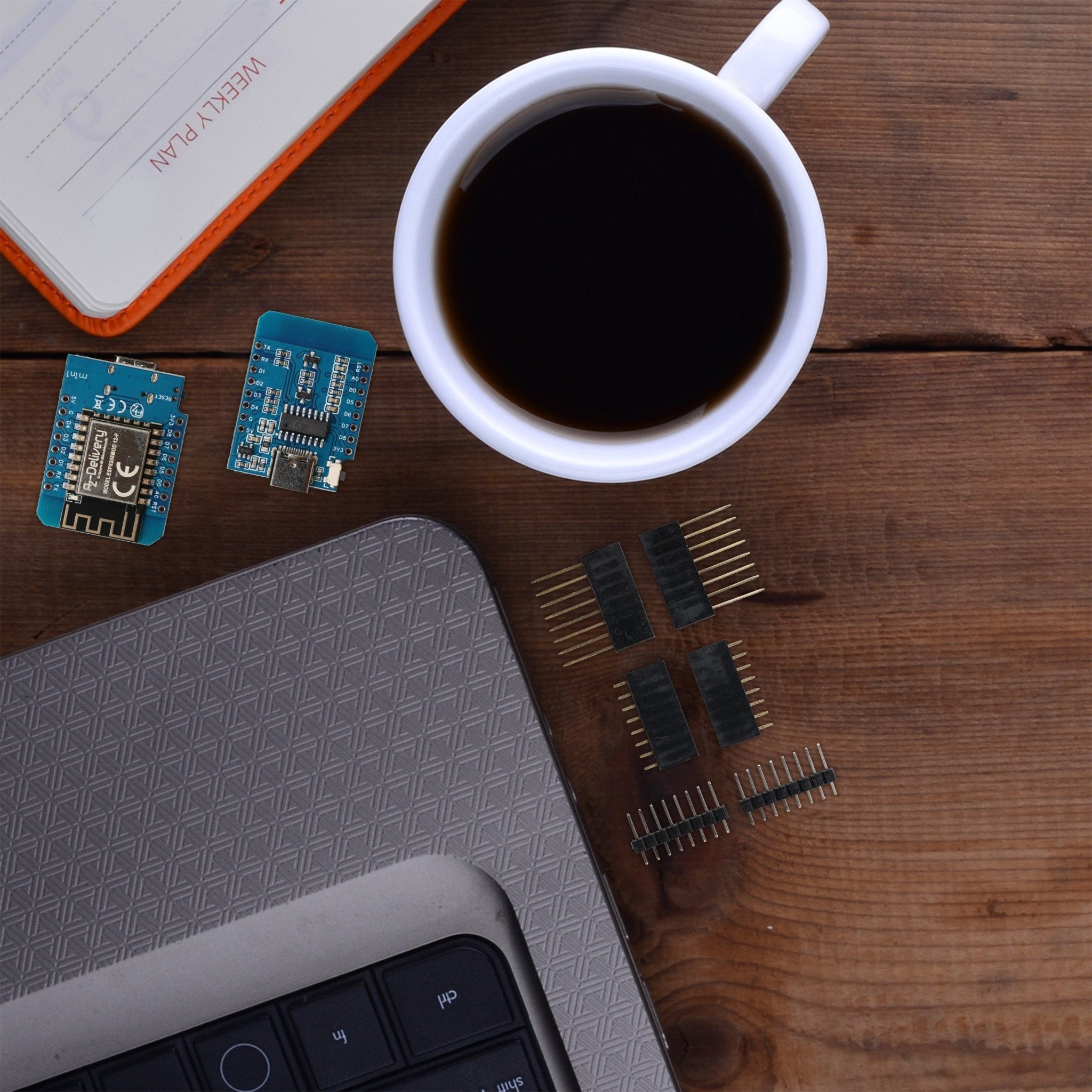

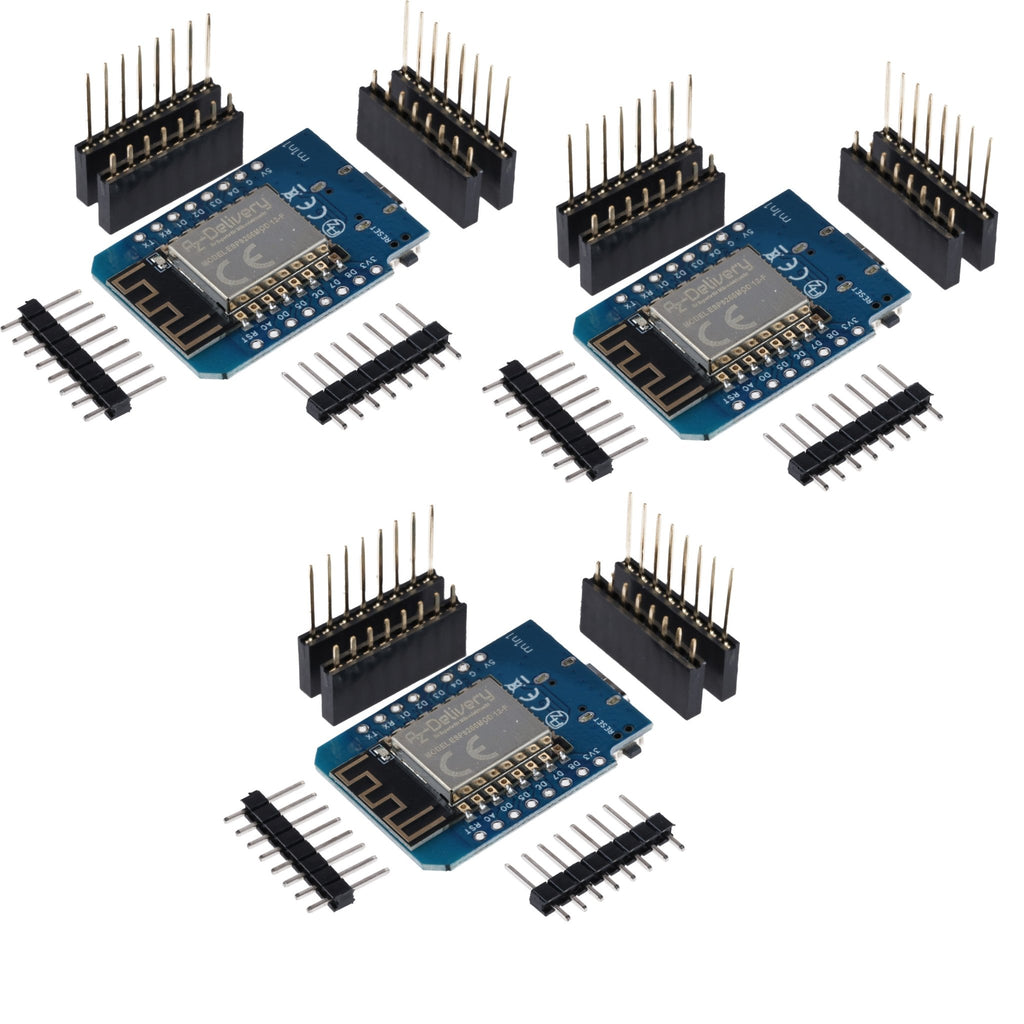

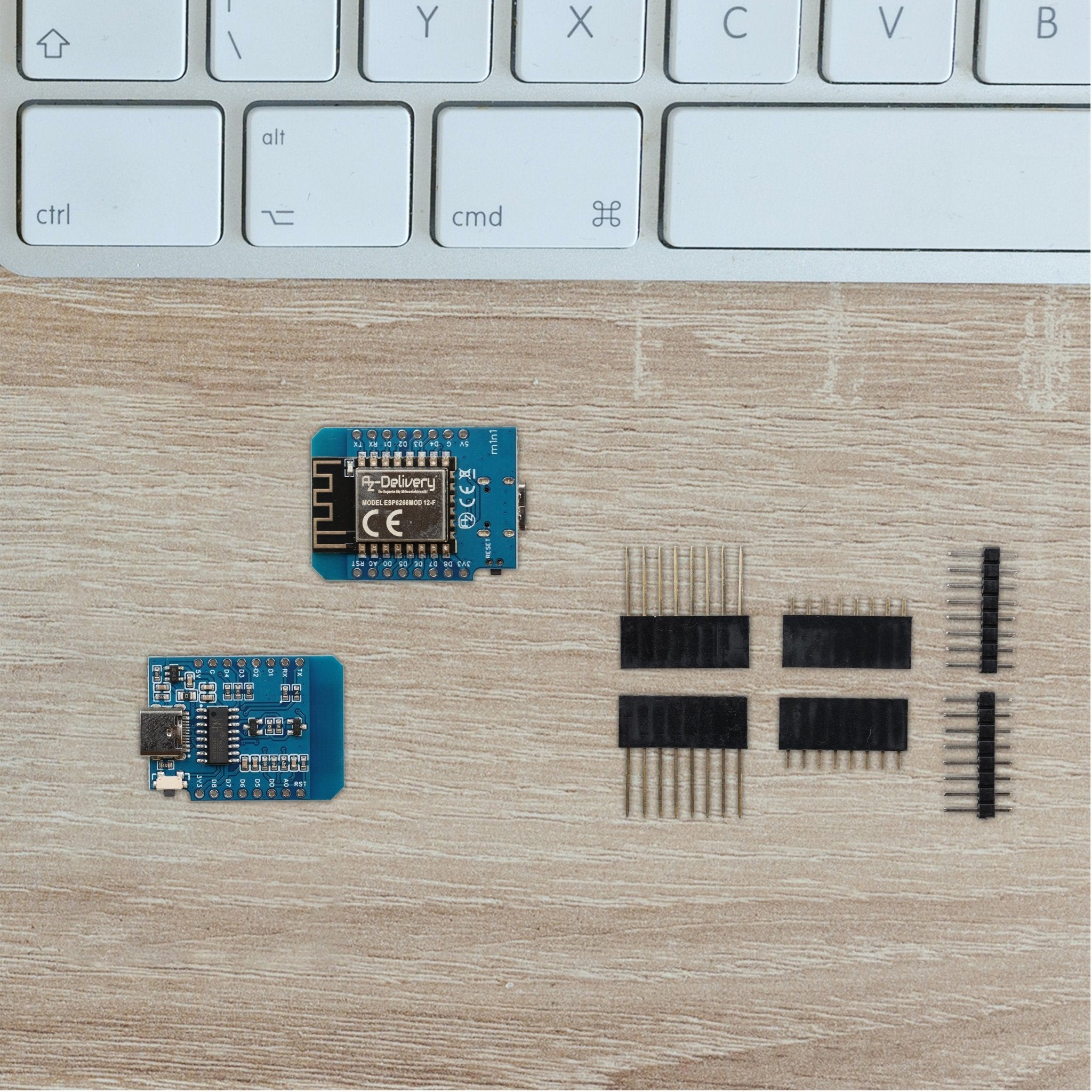

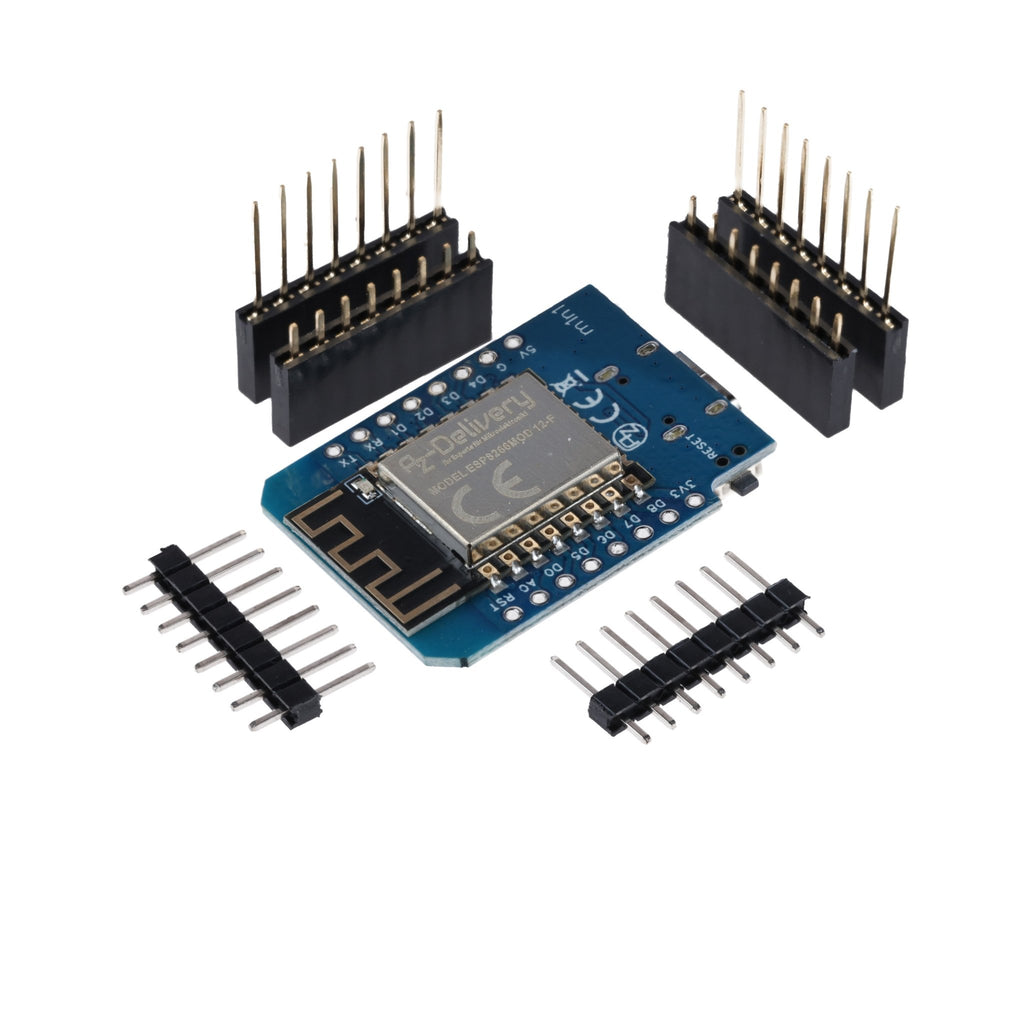

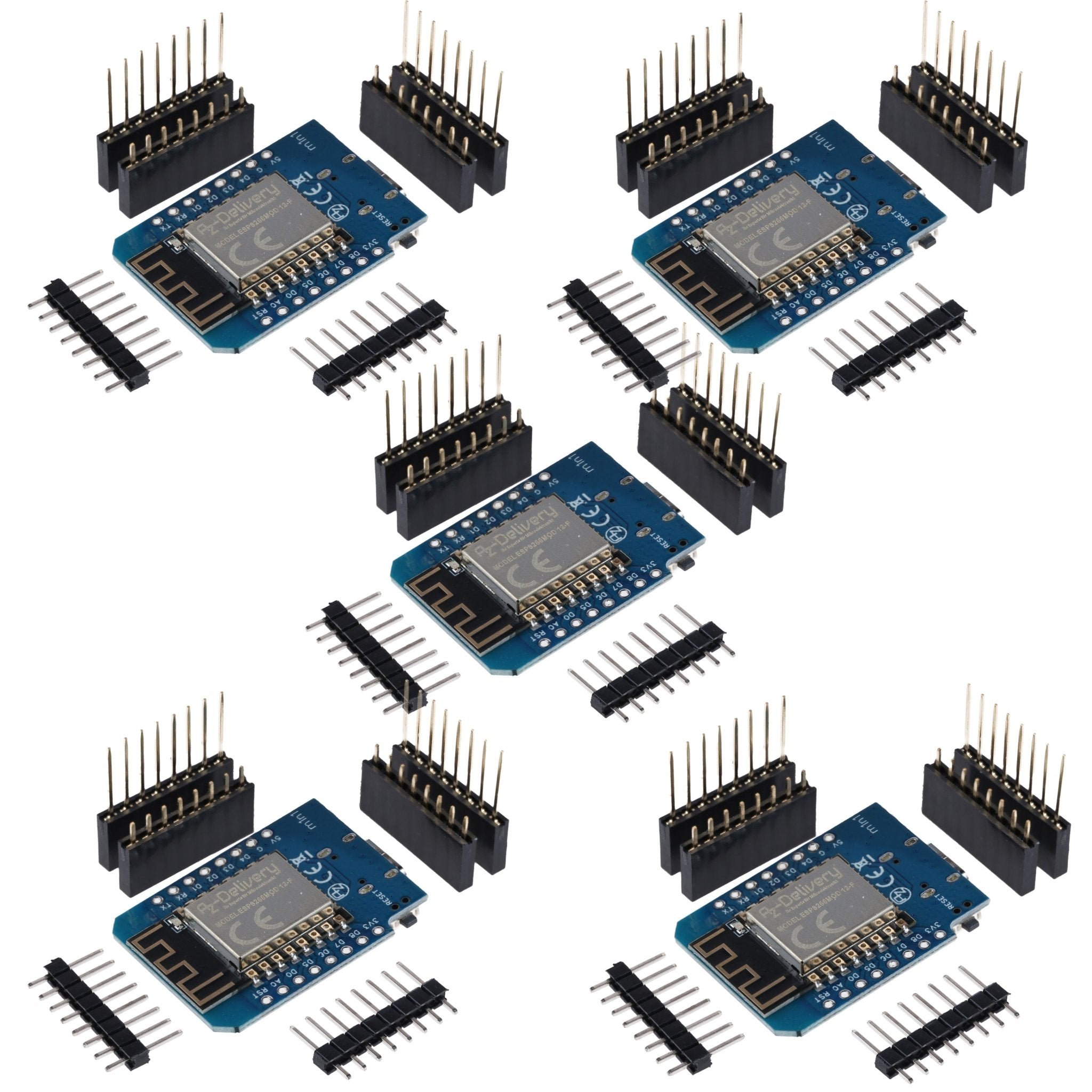

The D1 mini module is supplied unsoldered with:

  • one pair of eight-pin headers
  • one pair of eight-pin female connectors
  • one pair of eight-pin female connectors with extra long legs


Technical data

Operating voltage 3.3V DC
Chip ESP8266-12F
Clock frequency 80MHz / 160MHz
Flash 4MB
Digital I/O pins 9
Analog input pin 1
Port USB-C
USB chip CH340 chip
Dimensions 25 x 35 x 6 mm
