Description
This ESP32 usb c was designed by Espressif to provide an easy introduction to programming the new ESP32 dual-core processor. Make! rightly called this module the "egg-laying wool-milk sow". With a multitude of new sensors and functions, this board represents the next step in IoT development. As with the predecessor model ESP8266, the WLAN functionality is implemented directly in the SoC, but with additional Bluetooth functionality (incl. BLE). The ESP32 processor used combines a CPU with 2 Tensilica LX6 cores, clocked at up to 240 MHz, and 512 kilobytes of SRAM in a single microcontroller chip. It also integrates a wireless unit for WLAN (according to 802.11bgn) and Bluetooth (Classic and LE). The WLAN function supports all common encryption methods such as WPA2. It can also act as an access point in the WLAN or as a sniffer in passive mode. The 32 pins include UART, I2C, SPI, DAC, ADC (12 bit) and all GPIO pins can be used as input or output. With your order at AZ-Delivery you will receive a product of the usual high quality and with fast delivery directly from Germany at a discount price! For further ideas and projects, visit our blog on the Internet or download our free eBooks on our website! AZ-DeliveryYour expert for microelectronics! At AZ-Delivery is a trademark registered with the DPMA (German Trademark and Patent Office). According to § 14 para. 2 MarkenG, third parties are prohibited from using this trademark in the course of trade.
Product description

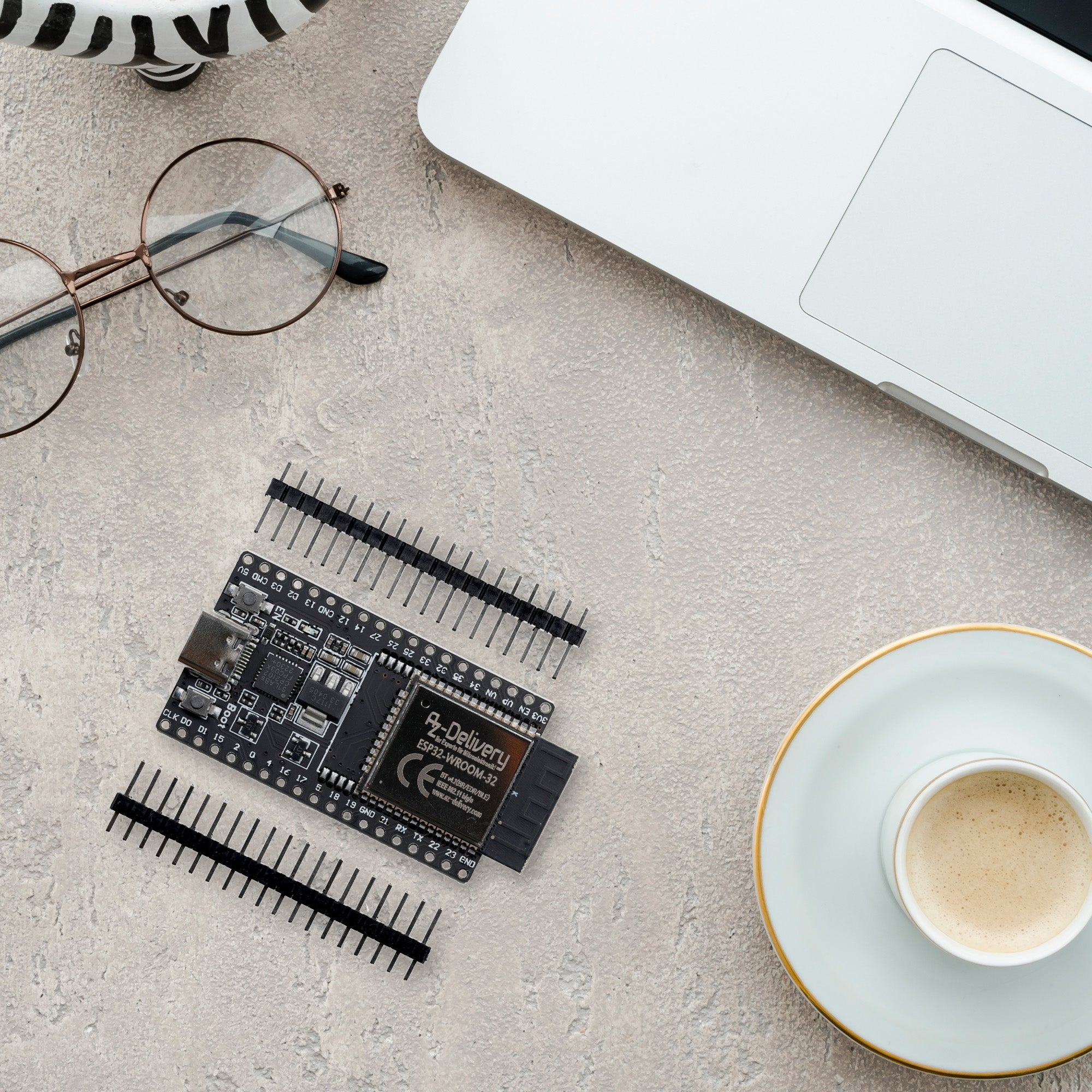

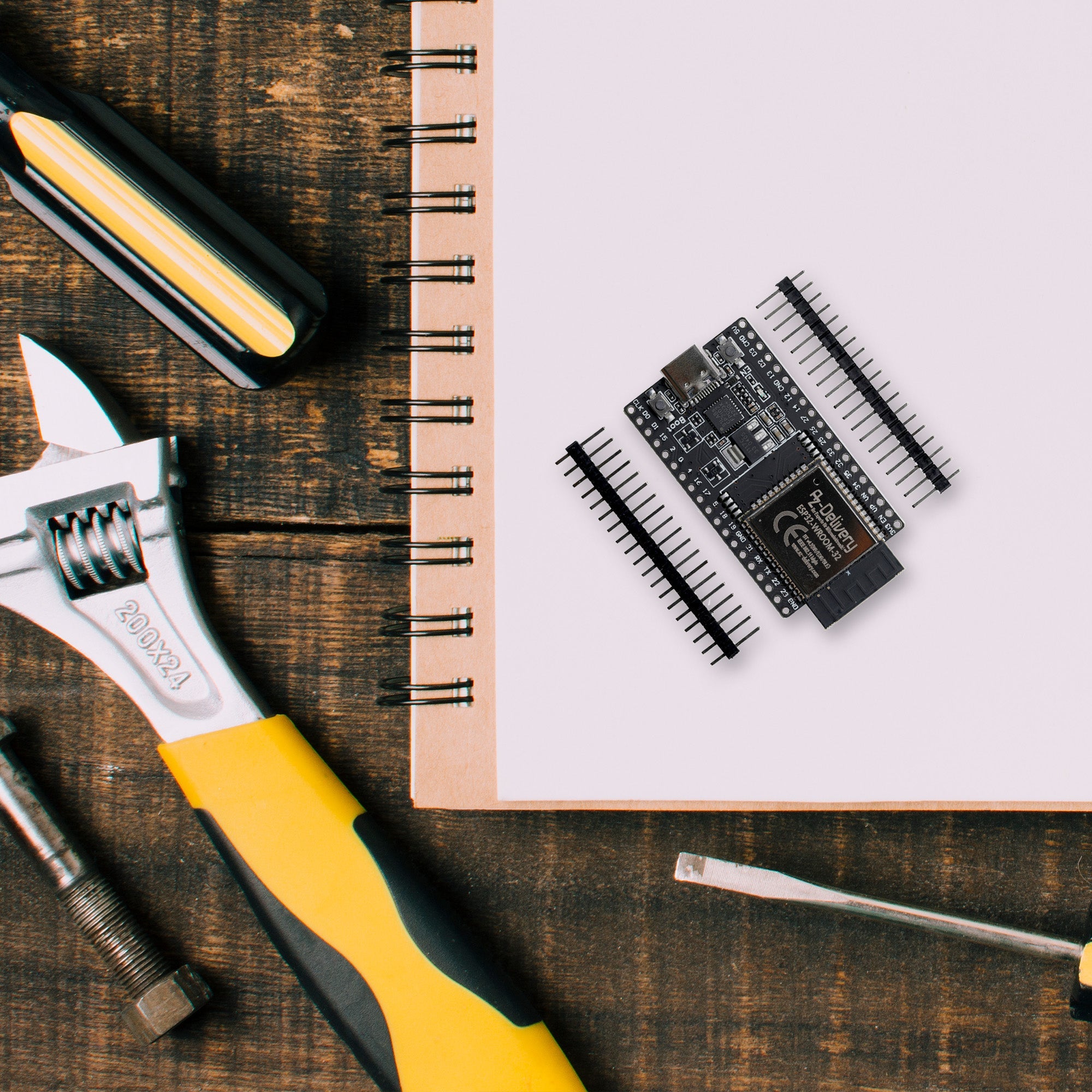

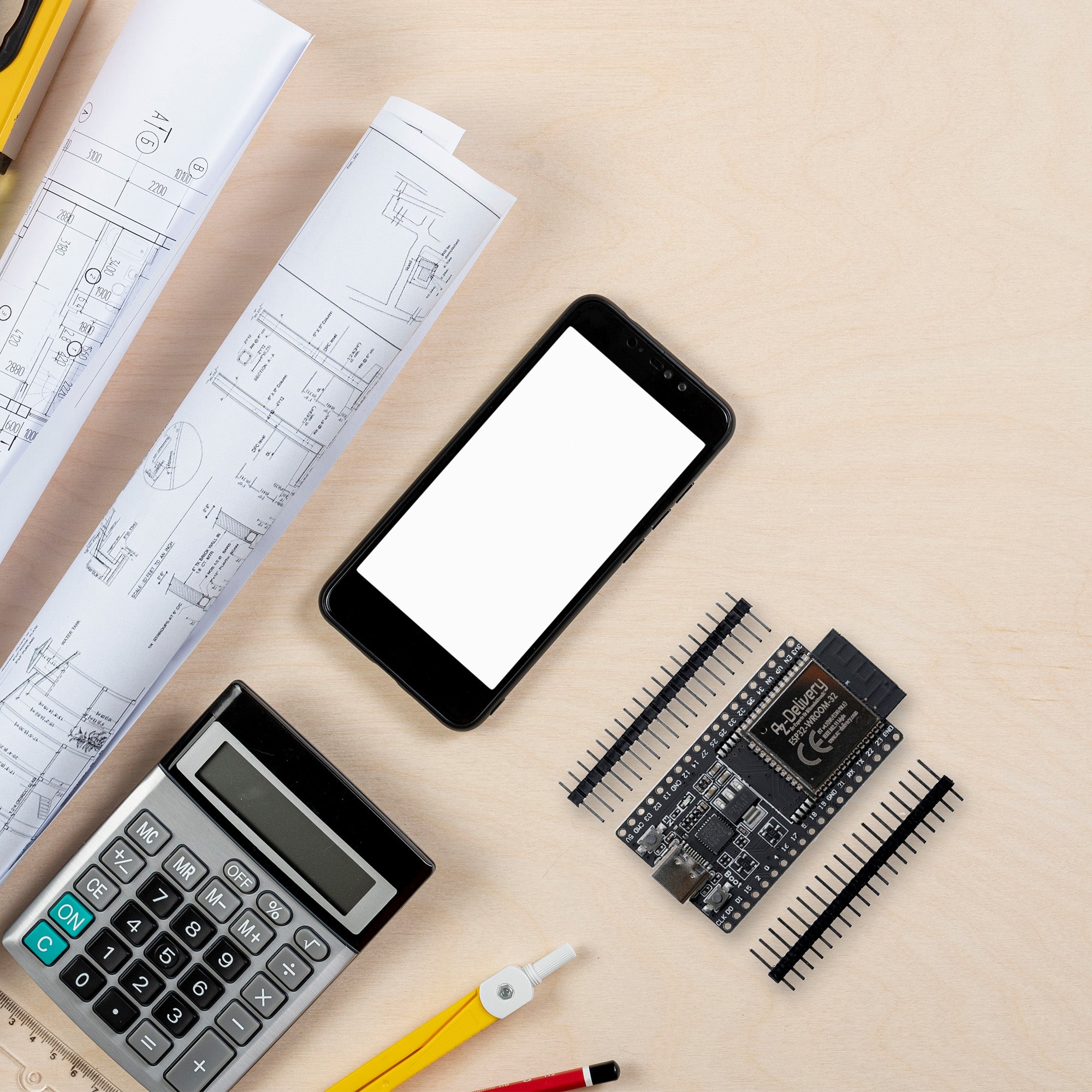

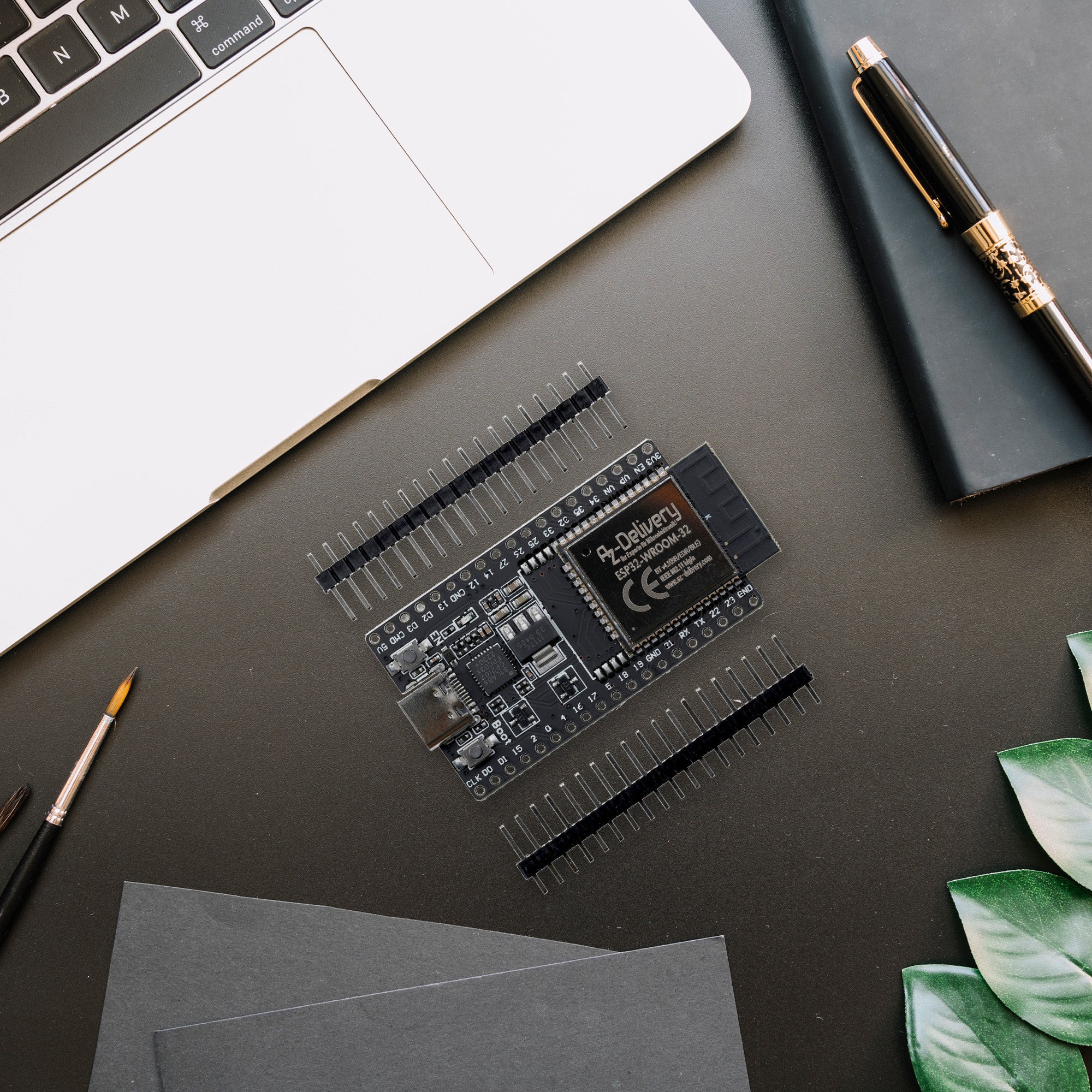

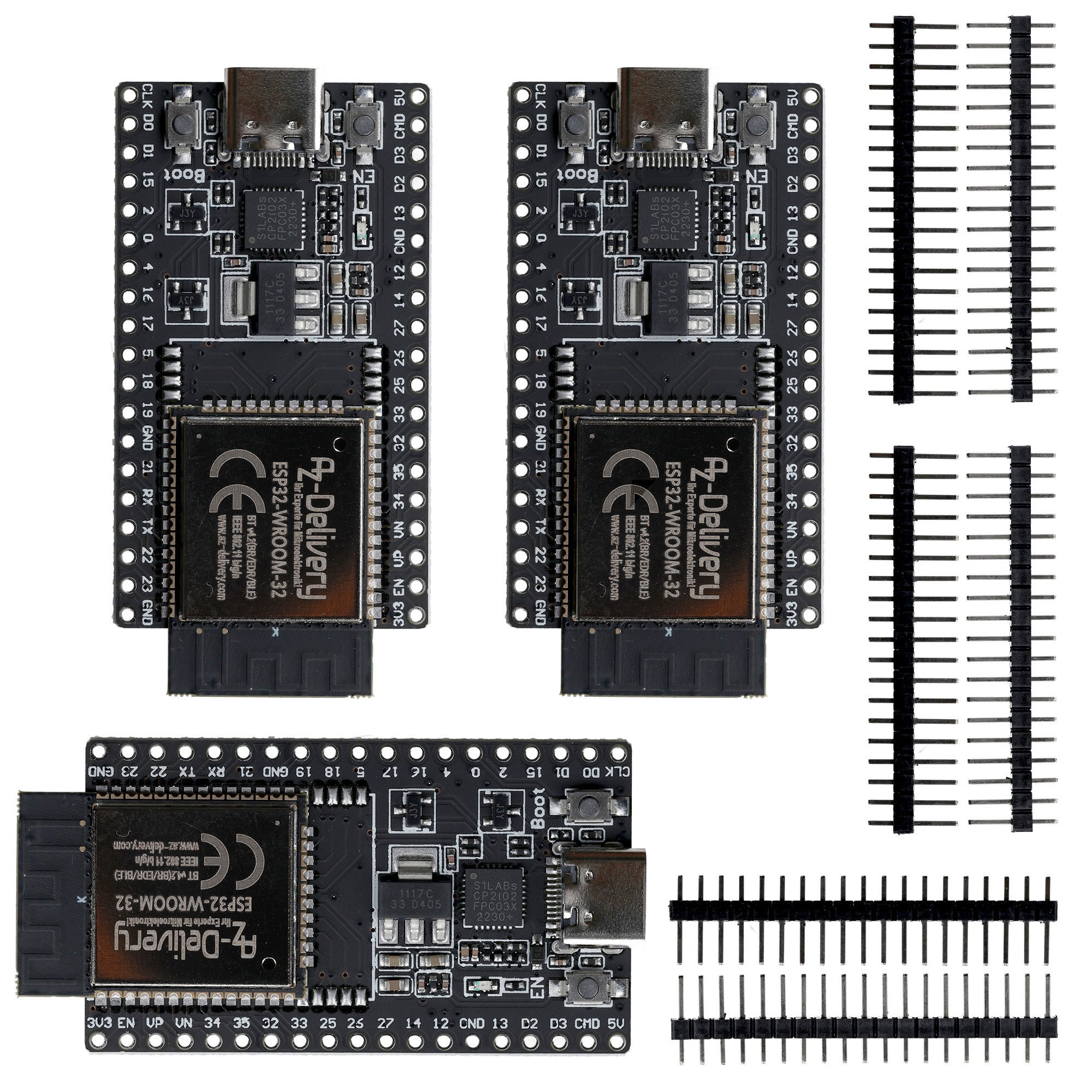

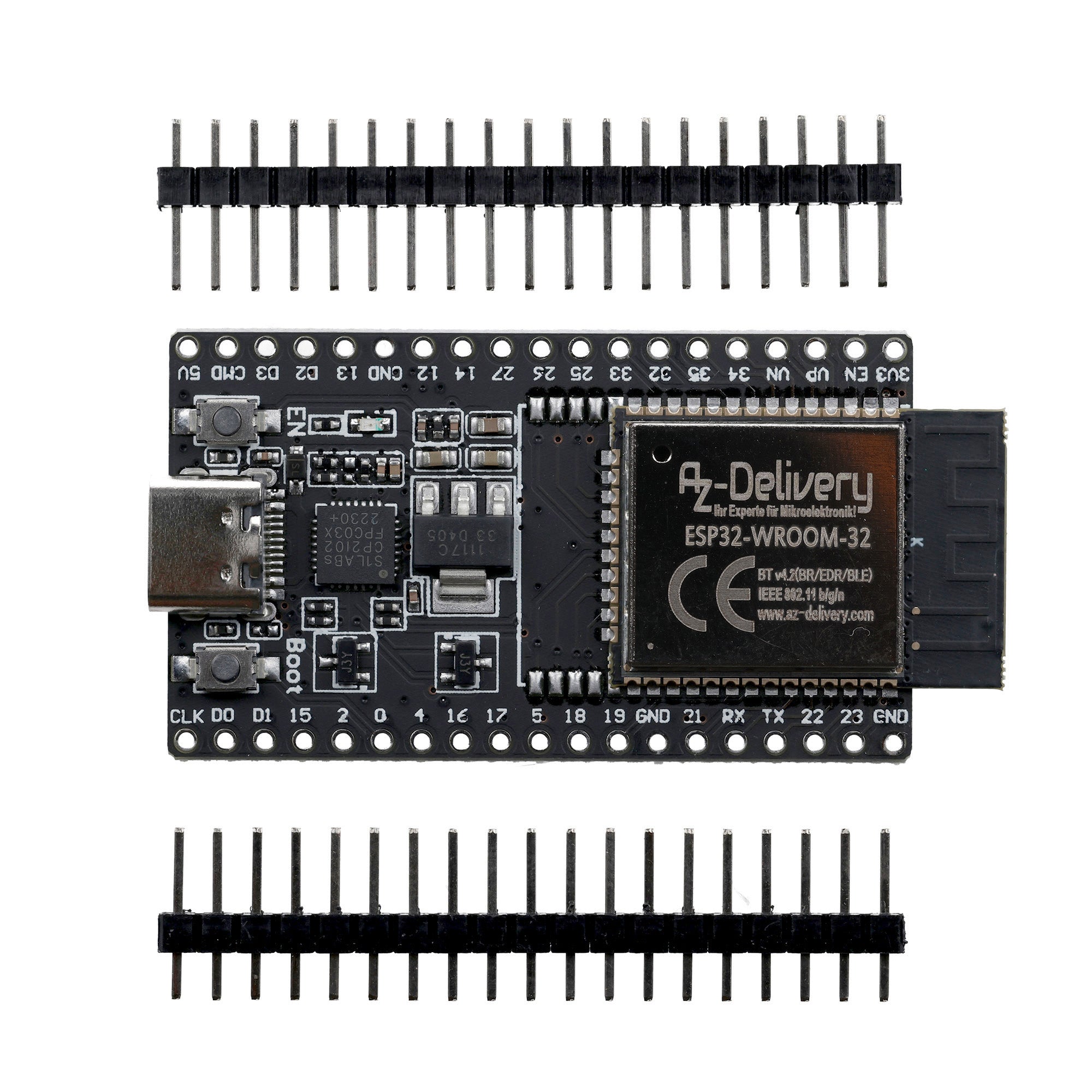

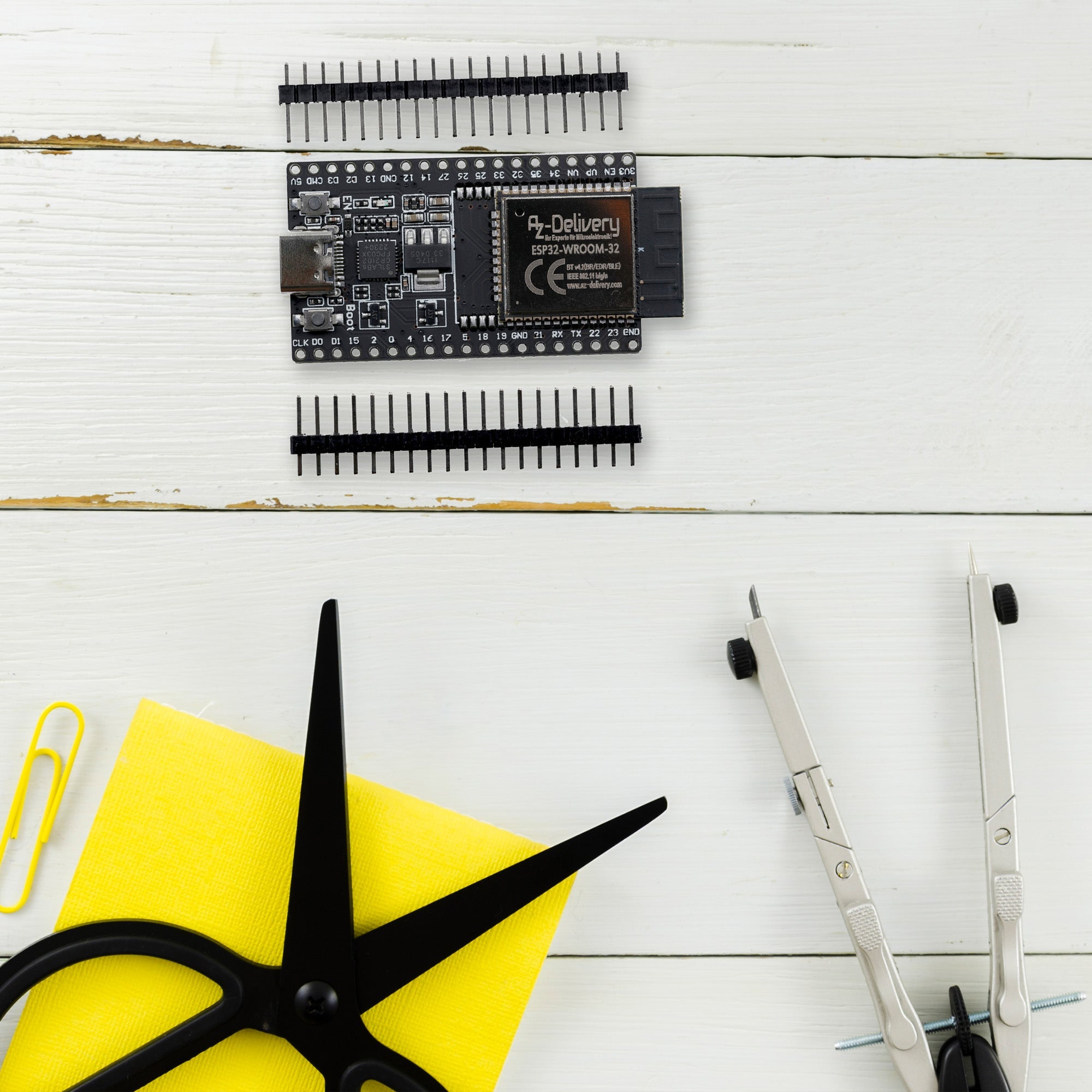

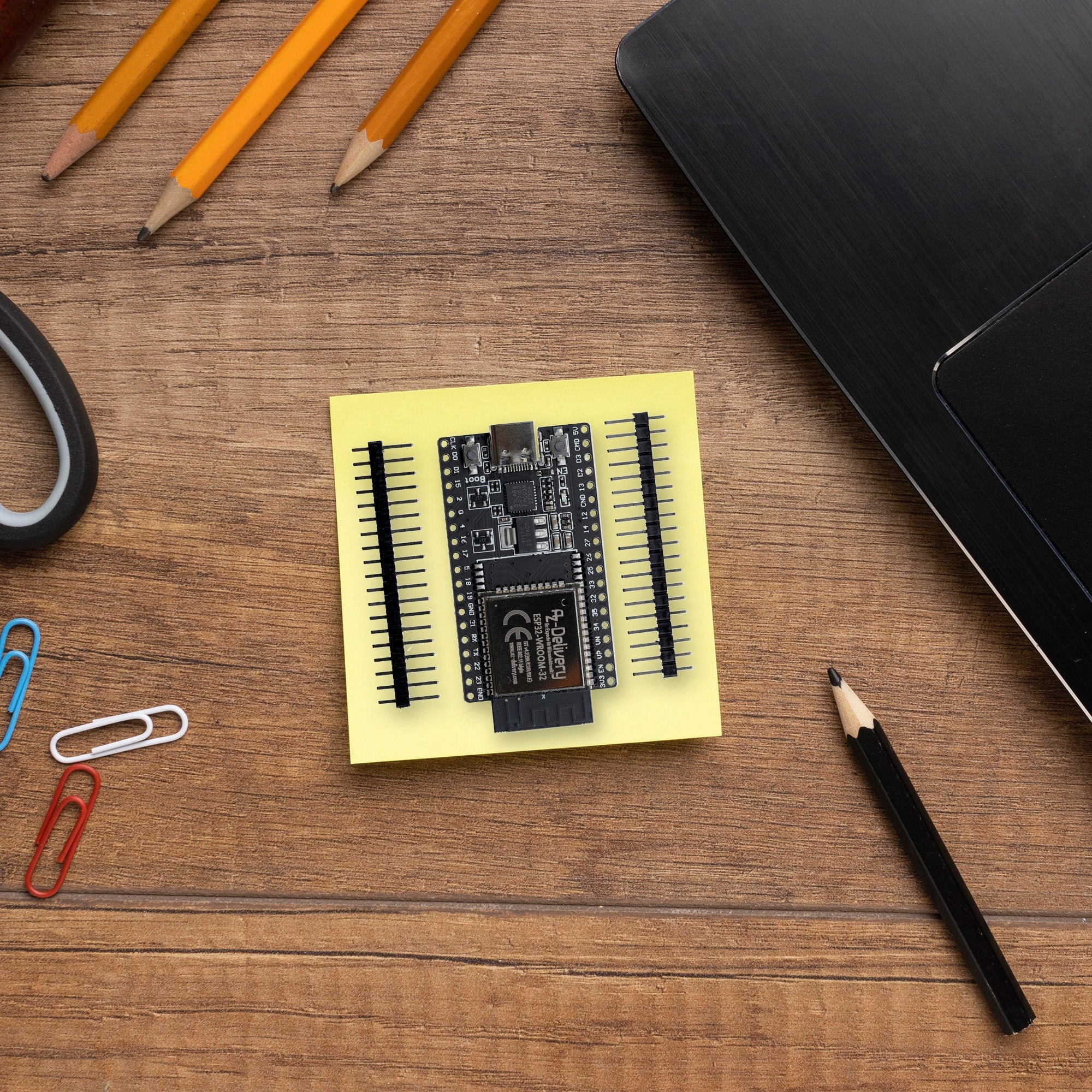

The AZ-Delivery ESP32 Dev Kit C V4 with USB-C connection combines a CPU with two Tensilica LX6 cores, clocked at up to 240 MHz, and 512 kilobytes of SRAM in a single microcontroller. It also integrates a wireless unit for WLAN (according to 802.11b/g/n) and Bluetooth (Classic and LE). The ESP32-WROOM-32 has been repositioned to achieve a significant increase in transmission and reception quality without increasing performance.
With the new board layout, both the power supply and the reset circuit for automatic programming have been significantly improved. Our dev kit is equipped with the ESP32-D0WD-V3.
Technical data
- Power supply voltage (USB): 5 V
- Input/output voltage: 3.3 V
- Required operating current: min. 500 mA
- SoC: ESP32S
- Clock frequency range: 80 MHz / 240 MHz
- RAM: 512 kB
- External flash memory: 4 MB
- I/O pins: 34
- Interfaces: SPI, I2C, I2S, CAN, UART
- Wi-Fi protocols: 802.11 b/g/n (802.11n up to 150 Mbps)
- Wi-Fi frequency: 2.4 GHz - 2.5 GHz
- Bluetooth: V4.2 - BLE and Classic Bluetooth
- Wireless antenna: PCB
- Dimensions: 56 x 28 x 13 mm
WLAN function
The WLAN function supports all common encryption methods, such as WPA2. The board can also act as an access point or sniffer in the WLAN. Interfaces such as UART, I2C, SPI, DAC and ADC (12 bit) are available via 32 GPIO pins. All GPIO pins can be used as input or output.

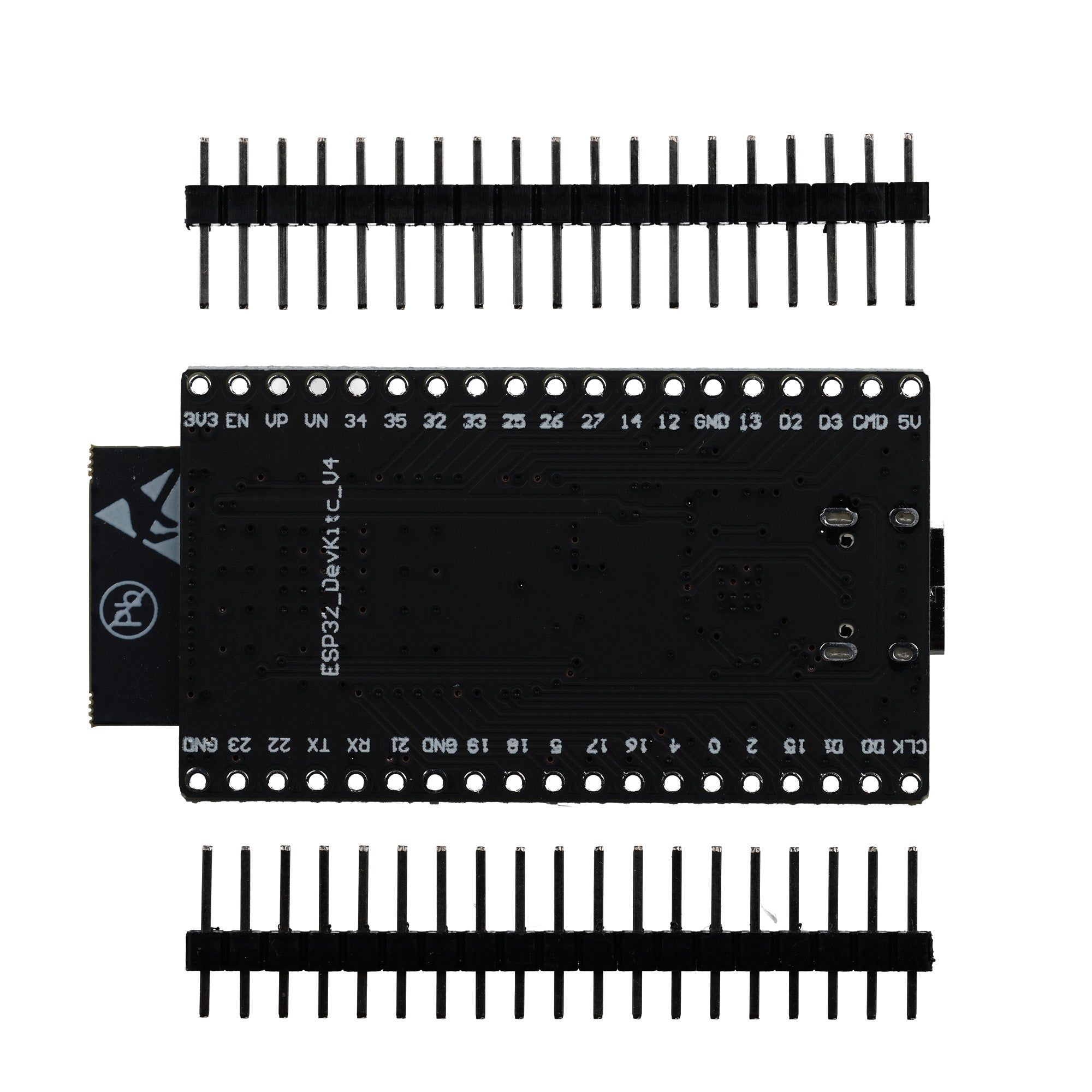

Digital and GPIO pins
