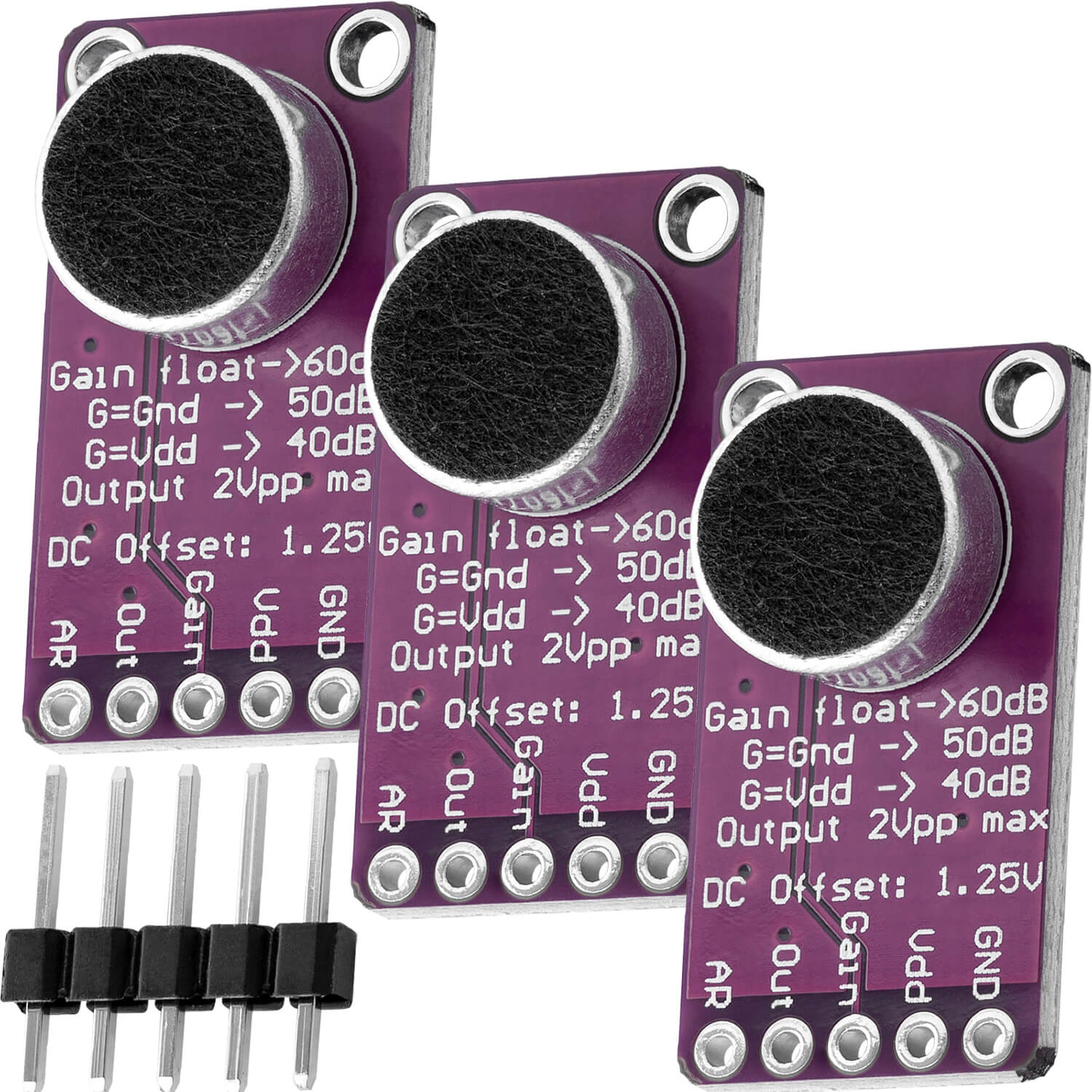

Max9814 microphone

Max9814 microphone


RRP: $18.00
Price: $6
You save:
Fast delivery
Returns
Secure payments

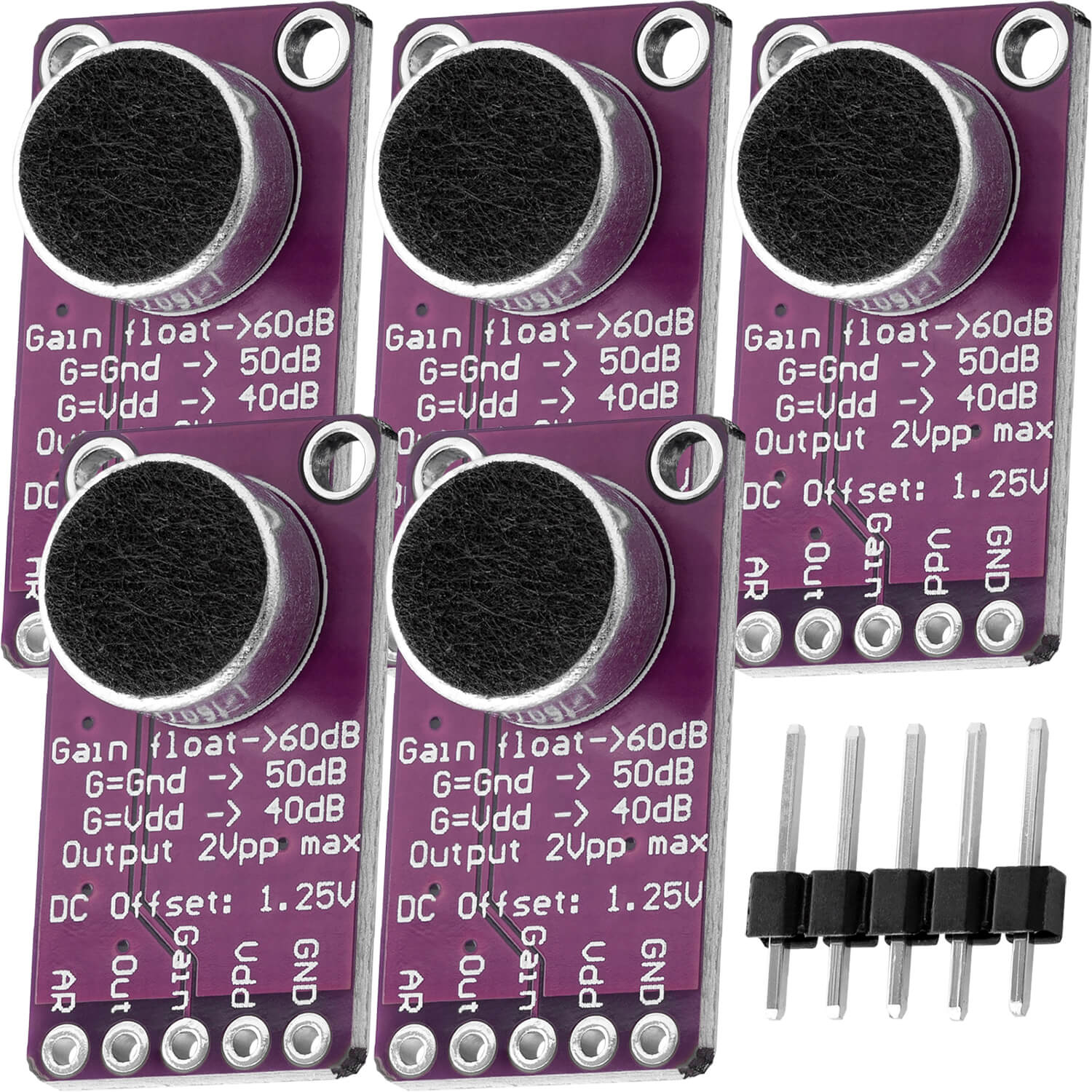

Select quantity discount: 1x Set
  • ✔️ The MAX9814 is a high-quality microphone amplifier is with automatic gain control (AGC) and low-noise microphone bias.
  • ✔️ The MAX9814 module has three amplifier settings (40dB, 50dB, 60dB).
  • ✔️ Internal low-noise microphone bias voltage 1.25V, 2Vpp
  • ✔️ Voltage supply: 2.7V to 5.5V
(See more product details)
Price:
$6 $18

(Including Tax)

(Including Tax)

Get it Mon, 12 Dec

if you order in the next 16 hours and 33 minutes

In stock
Payment & Security
  • American Express
  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Product Details

Ean 4260581558604
Product Name Max9814 Mikrofon
Number of Items 1
Size 25,0x13,8x10,2mm
Weight 0,014kg

Product recommendations

Product Description

Our AZDelivery MAX9814 microphone is a high quality microphone amplifier with automatic gain control (AGC) and low noise microphone bias.

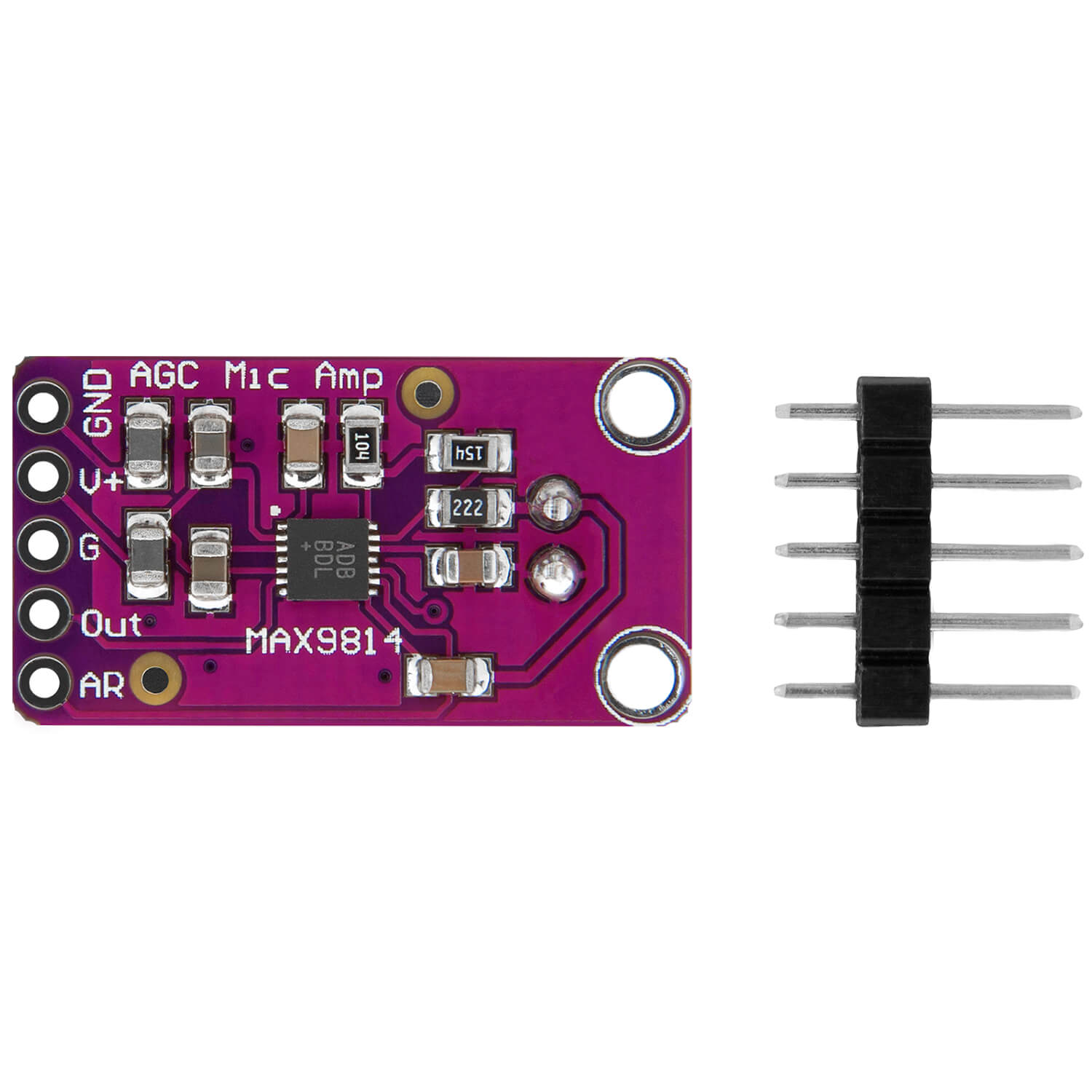

The unit includes a low-noise preamplifier, a variable-gain amplifier (VGA), an output amplifier, a microphone bias circuit, a voltage generator, and an AGC control circuit. The low-noise preamplifier has a fixed gain of 12dB, while the VGA gain automatically adjusts from -20dB to 0dB.

The output amplifier offers selectable gains of 8dB, 18dB and 28dB.

Without compression, cascading the amplifiers gives a total gain of 40dB, 50dB or 60dB.

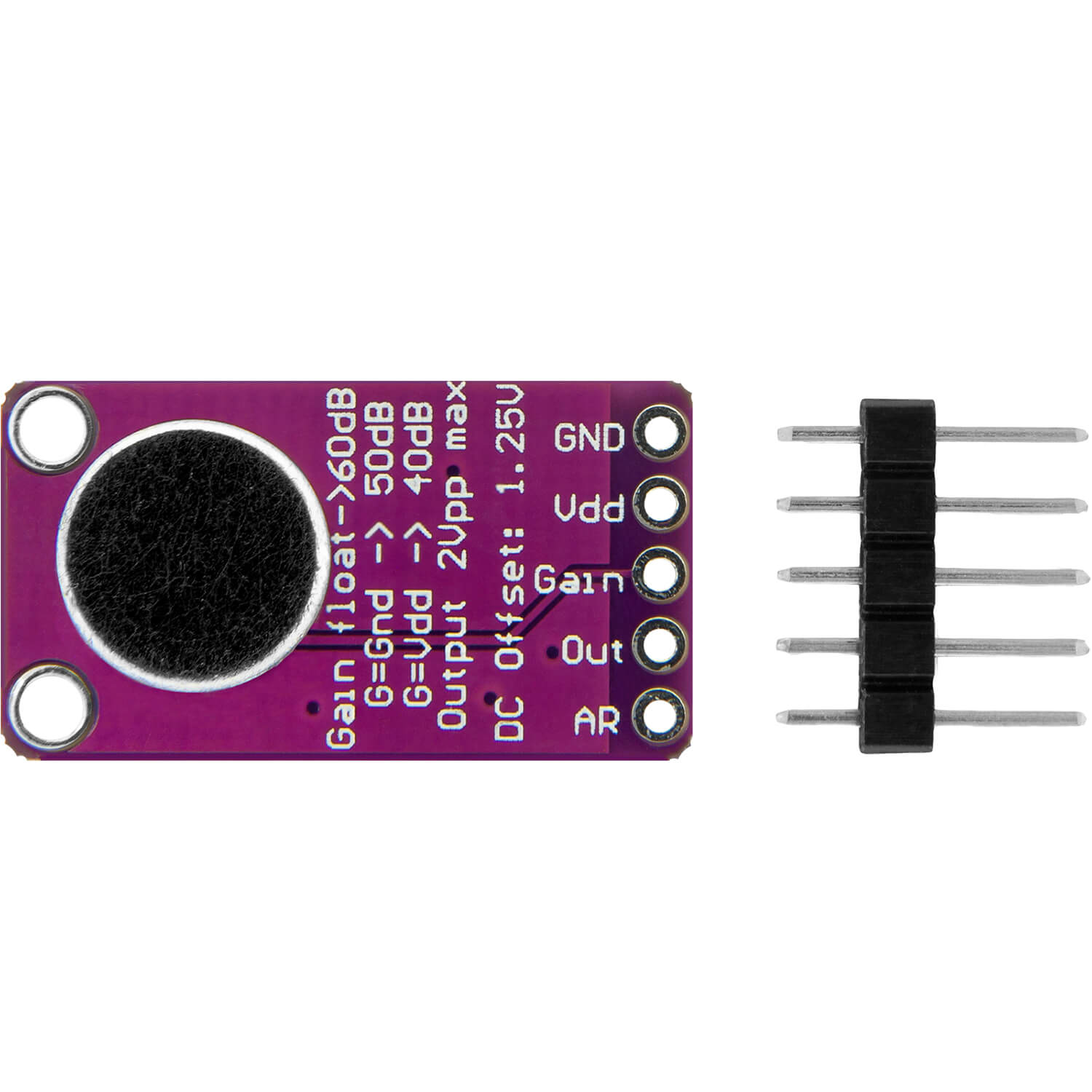

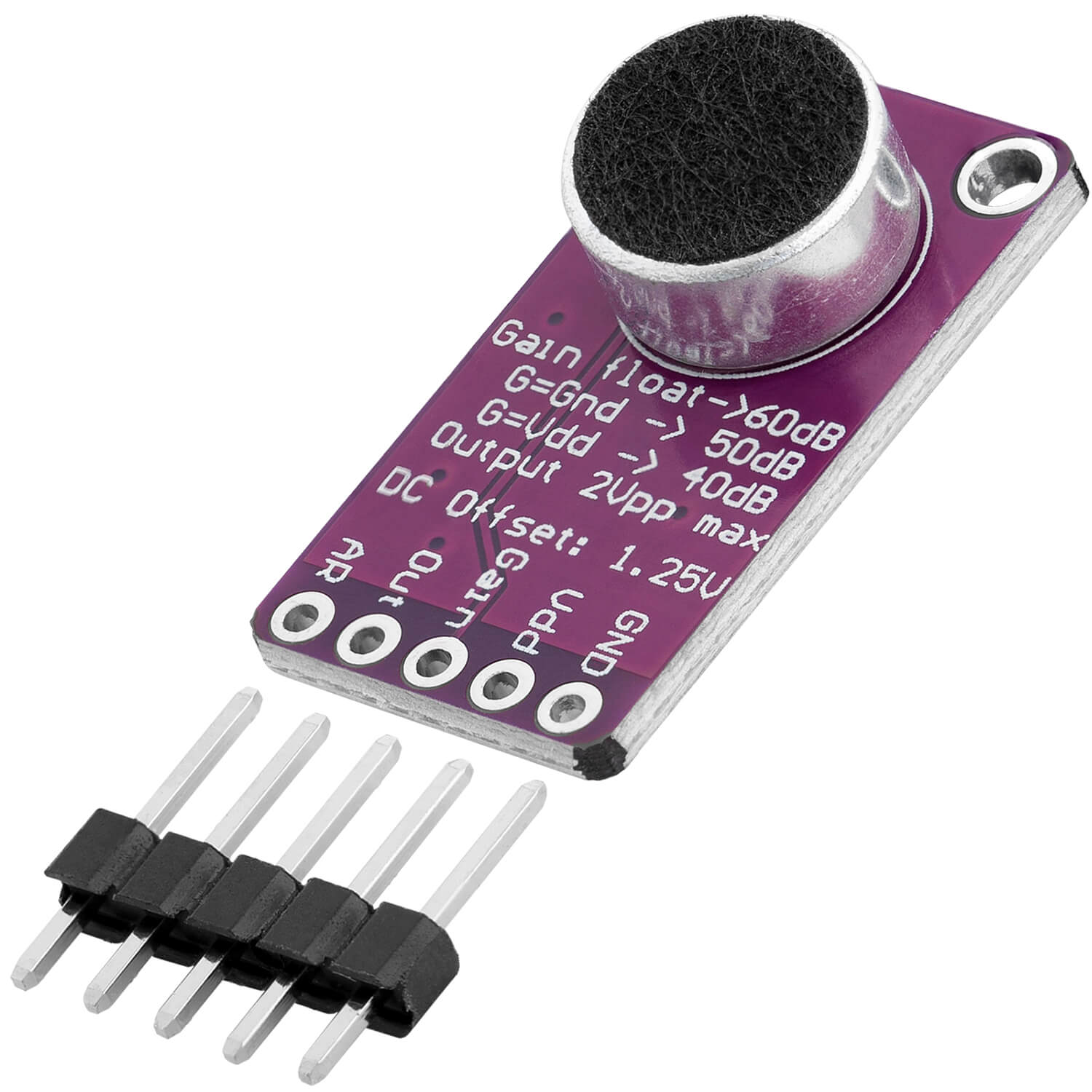

The gain of the output amplifier can be adjusted by connecting the gain terminal to GND (50dB) or VCC (40dB) or leaving it free (60dB).


Recommendation: start the MAX9814 quietly


Similarly, the attack/release ratio can be changed with the AR connection. Default setting (not connected) 1:4000, AR to VCC 1:2000, AR to GND 1:500.


Recommendation: keep basic setting (default), do not connect (NC).

Breakout board size: 26mm x 14mm x 10mm / 1" x 0.6" x 0.4".



With your order at AZ-Delivery you get a product in usual high quality and with fast delivery directly from Germany for a discount price!

For more ideas and projects, visit our blog on the Internet or download our free eBooks on our website!



AZ-Delivery: Your expert for microelectronics!
