✔️Input voltage: 2V - 24V
✔️Output voltage: 3V - 28V
✔️Output current: max. 2A
✔️Size: 36 mm x 17 mm x 6.5 mm / approx. 2 grams

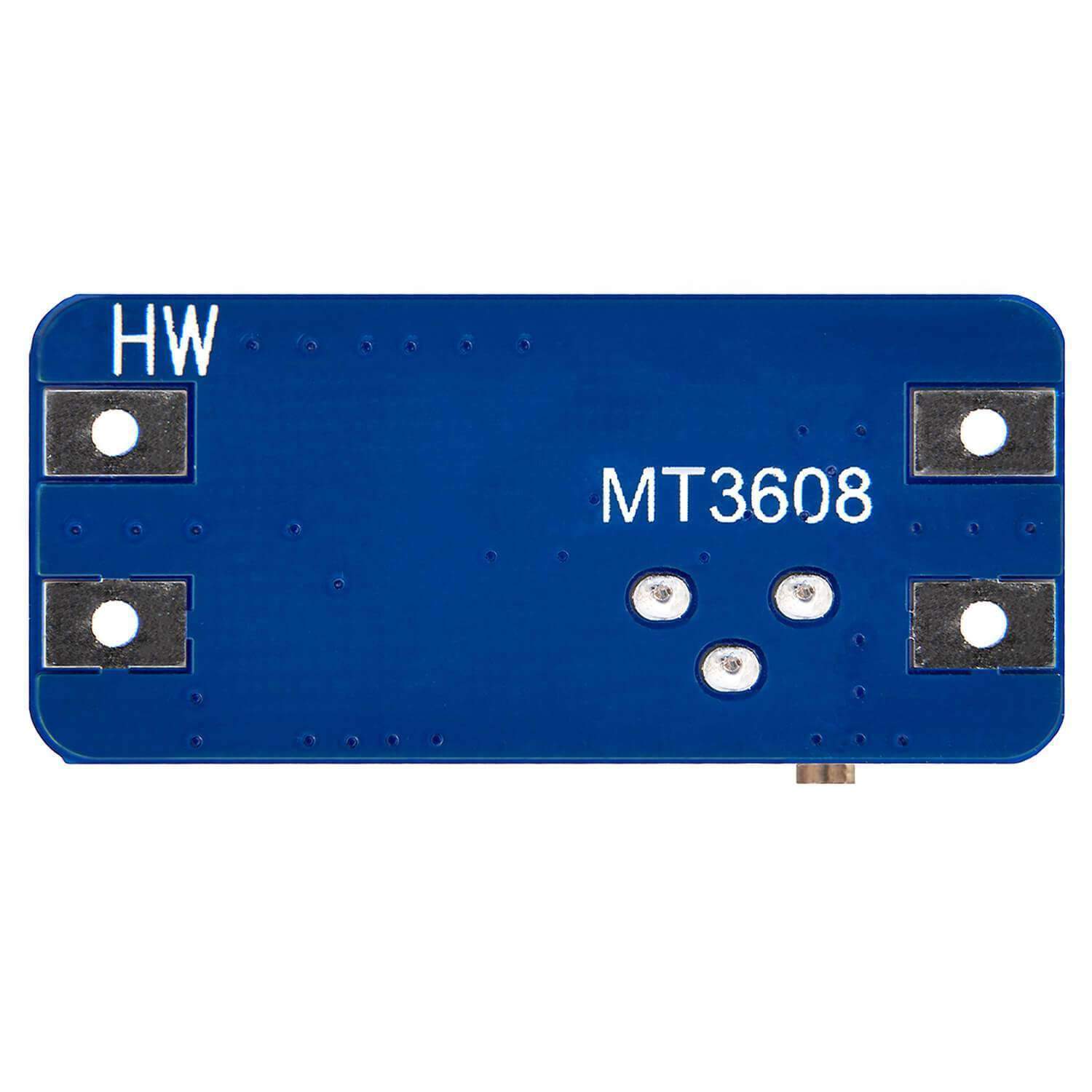

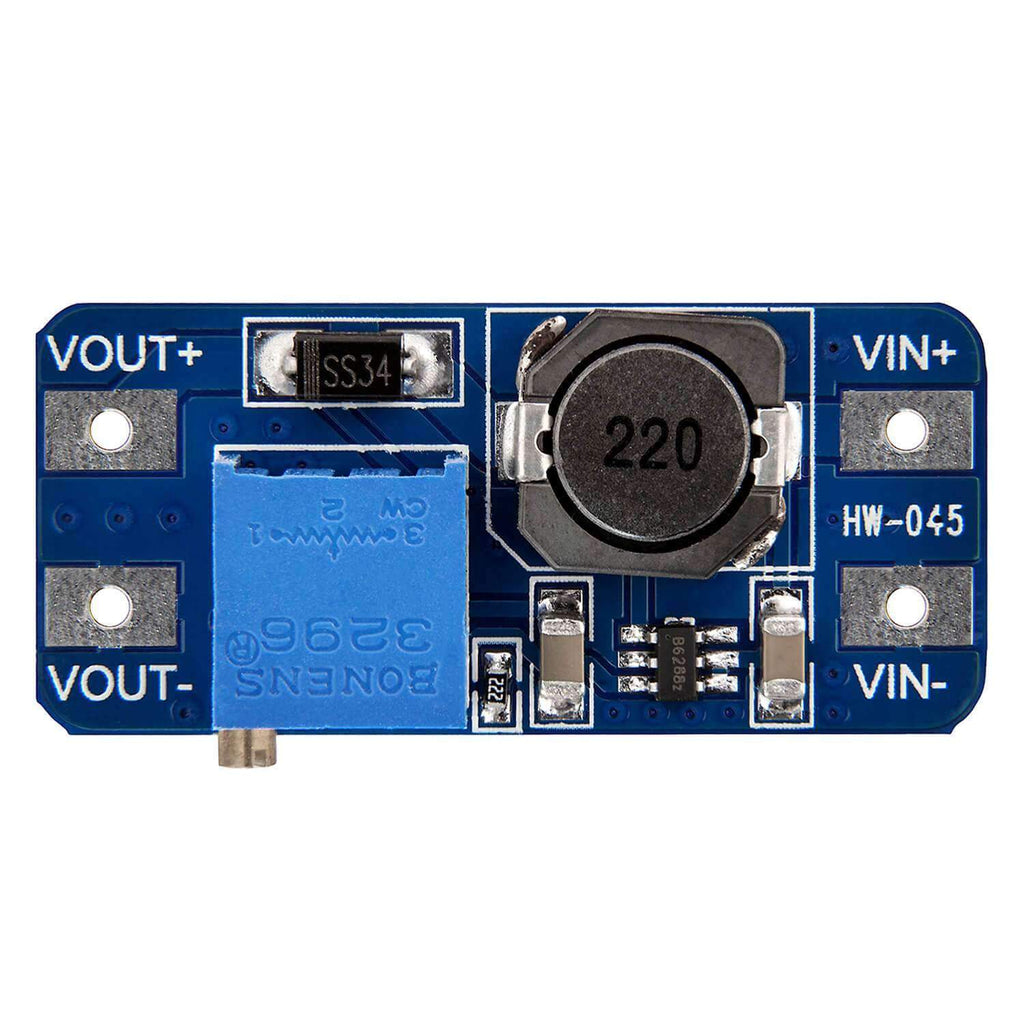

✔️Solder connections Pin definition: input to IN- IN+ / output to OUT- OUT+.
✔️Permissible ambient temperature: -45° C to +85° C
✔️1.2 MHz fixed switching frequency
✔️Internal 4A switch current limit.

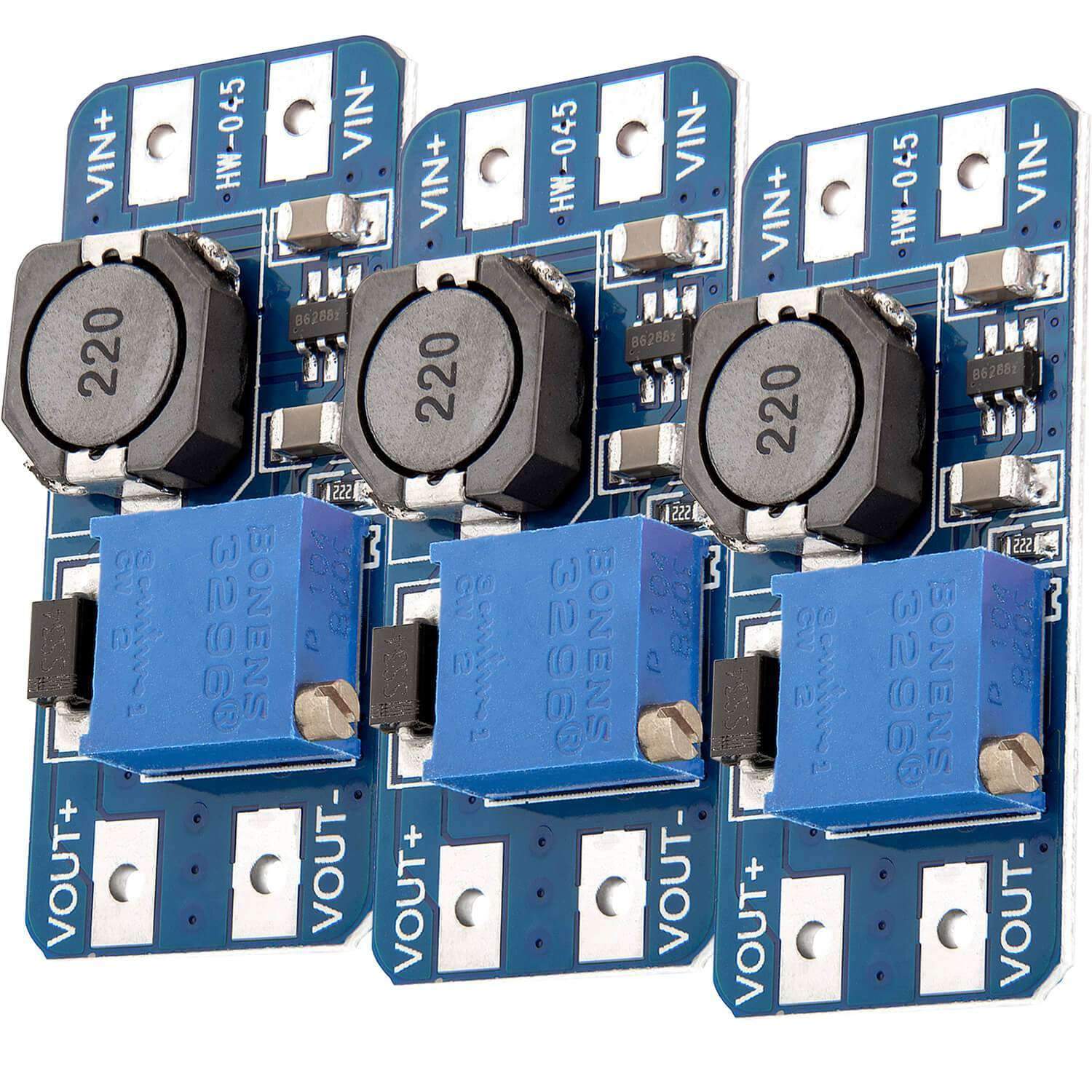

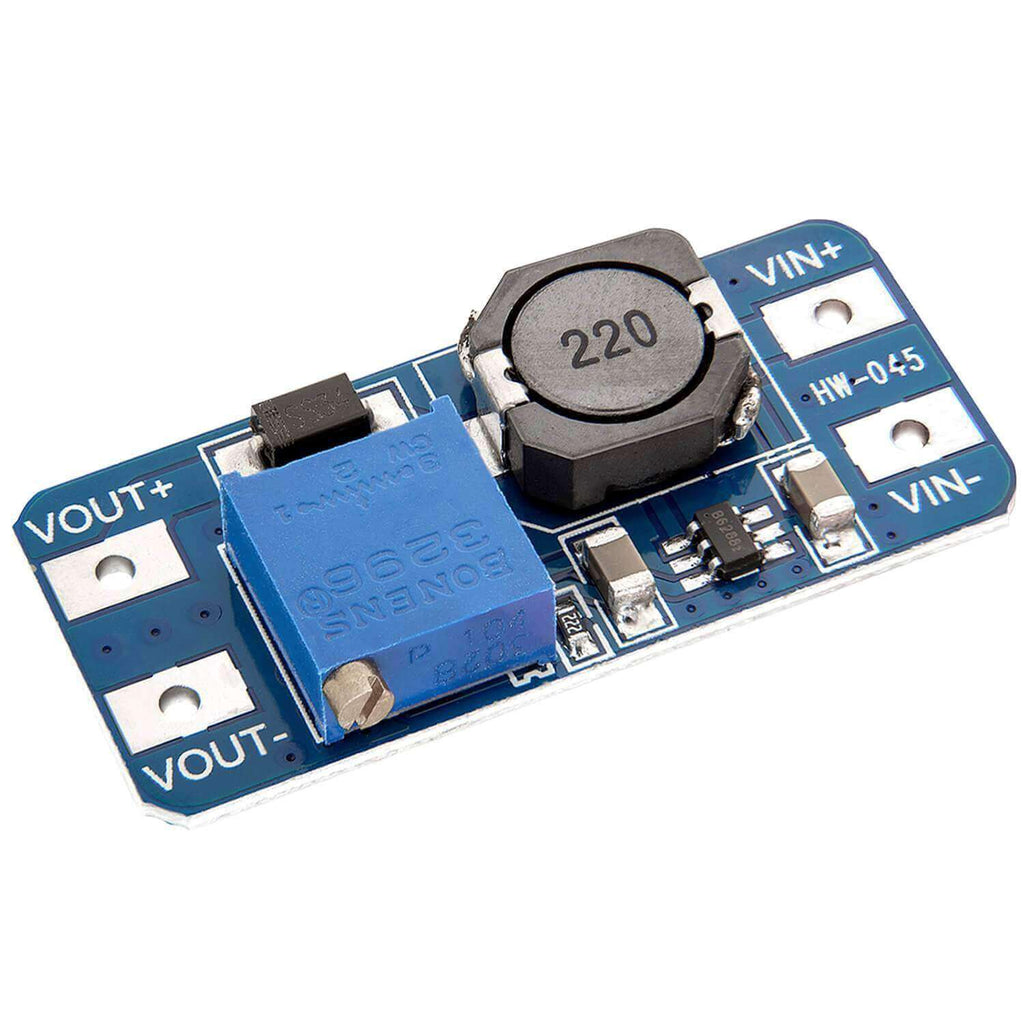

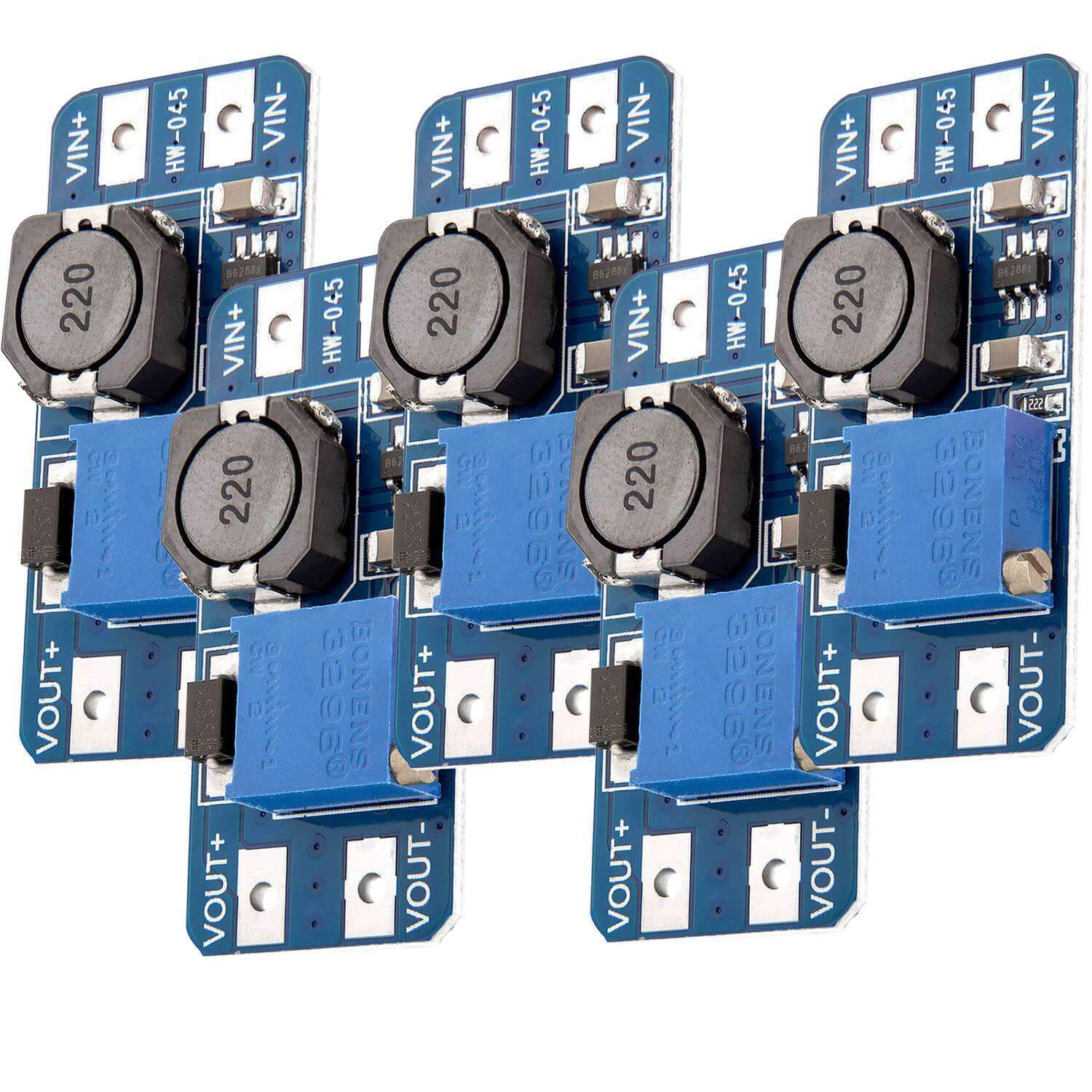

You want to supply your 5V powered controller with mobile power, for example with a 3.7V lithium battery? No problem if you interpose the, AZ-Delivery Step Up voltage converter MT3608. With less than 7% loss, this converter is very efficient and saves you from interconnecting multiple power sources to be able to supply your device with power. Simply and analogously determine the desired output voltage via the variable resistor. Note that this must be higher than the incoming voltage. For currents of more than 1 A at the output, we recommend the use of a heat sink. This is also best purchased from AZ-Delivery.
The MT3608 voltage converter allows a maximum output current of up to 2000 mA. The output voltage is always higher than the supply voltage..
