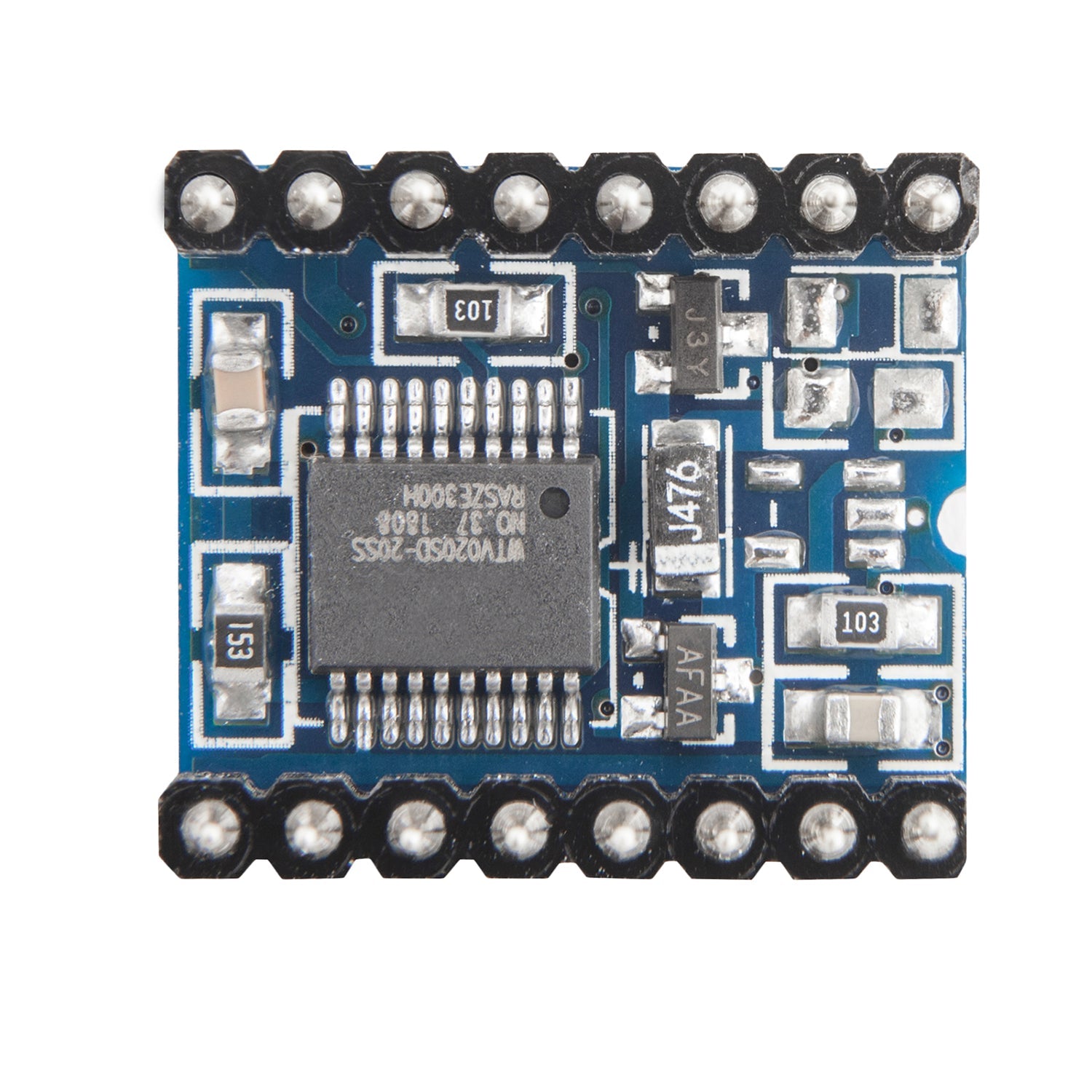

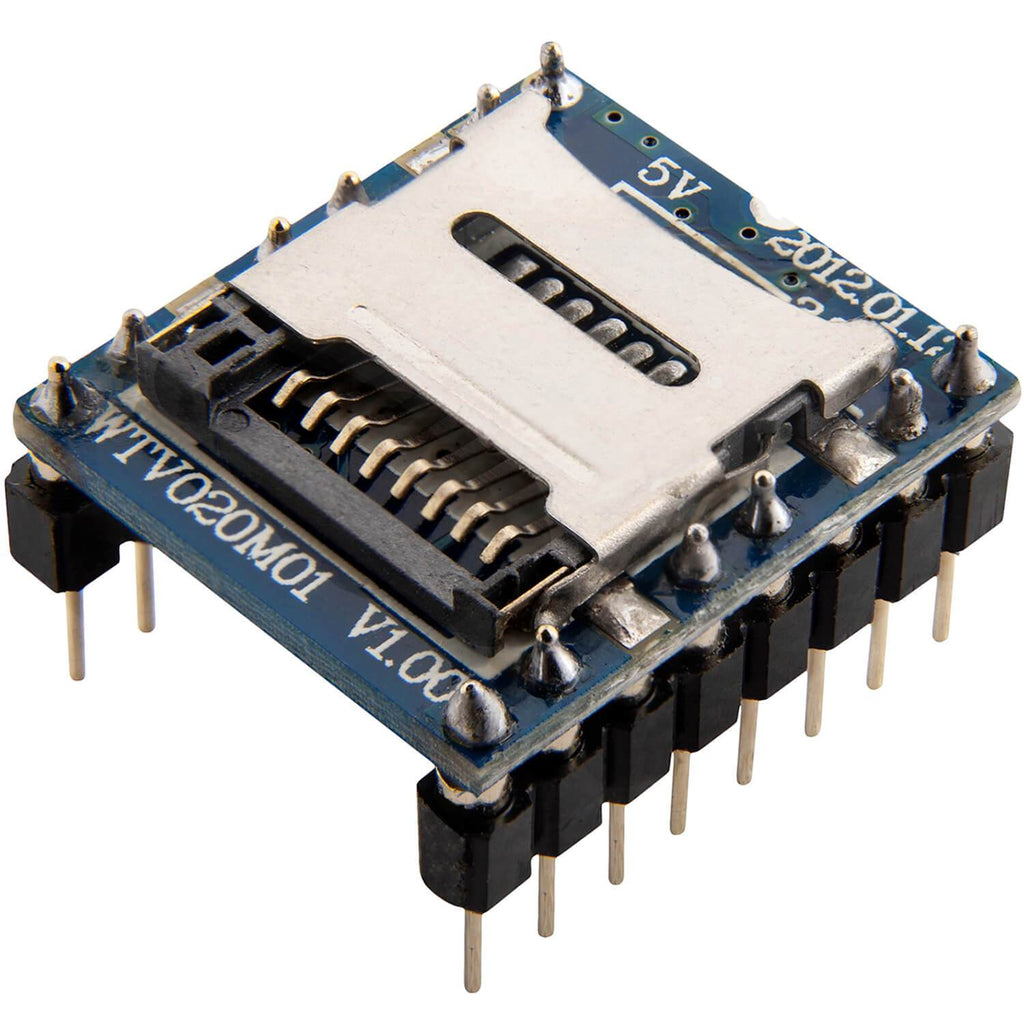

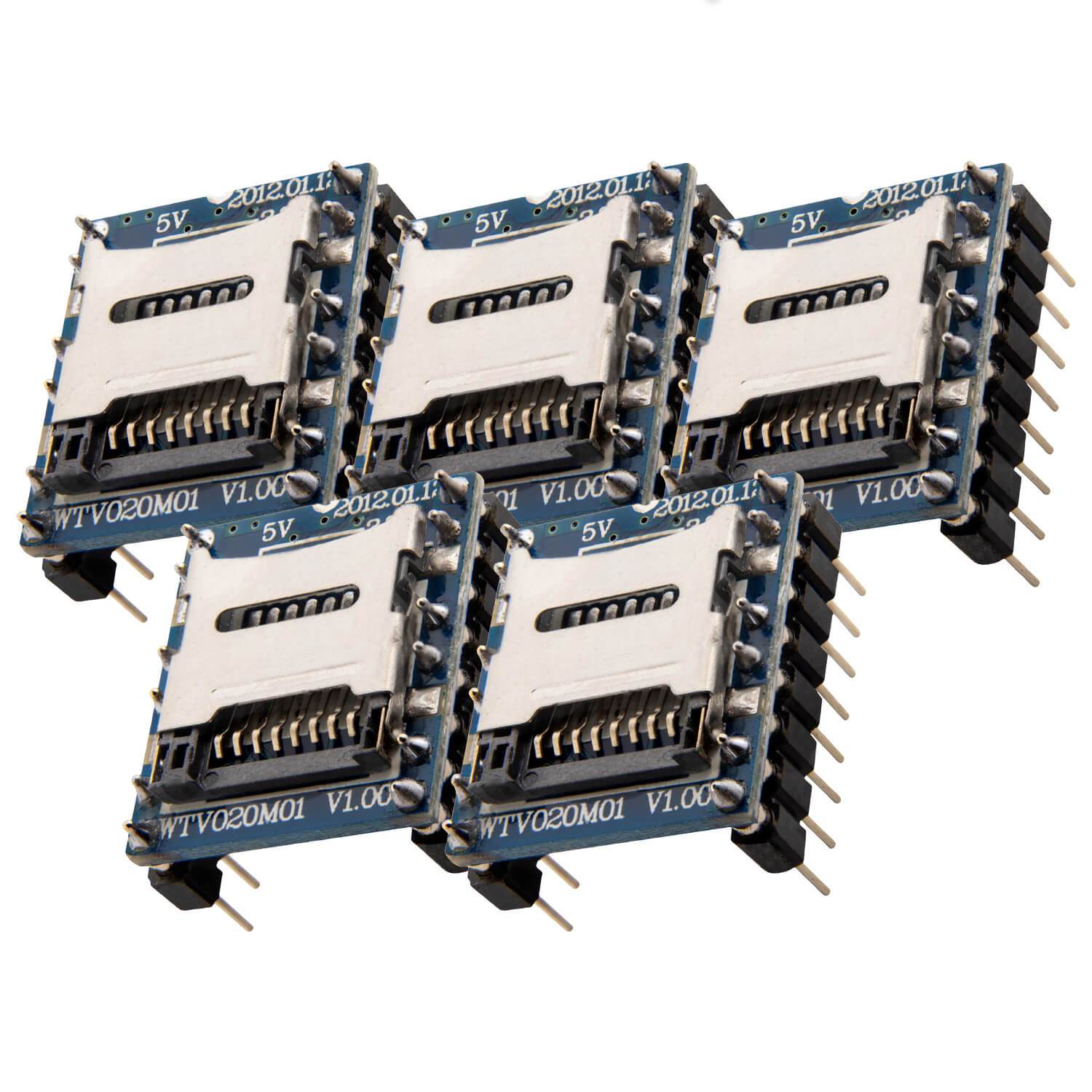

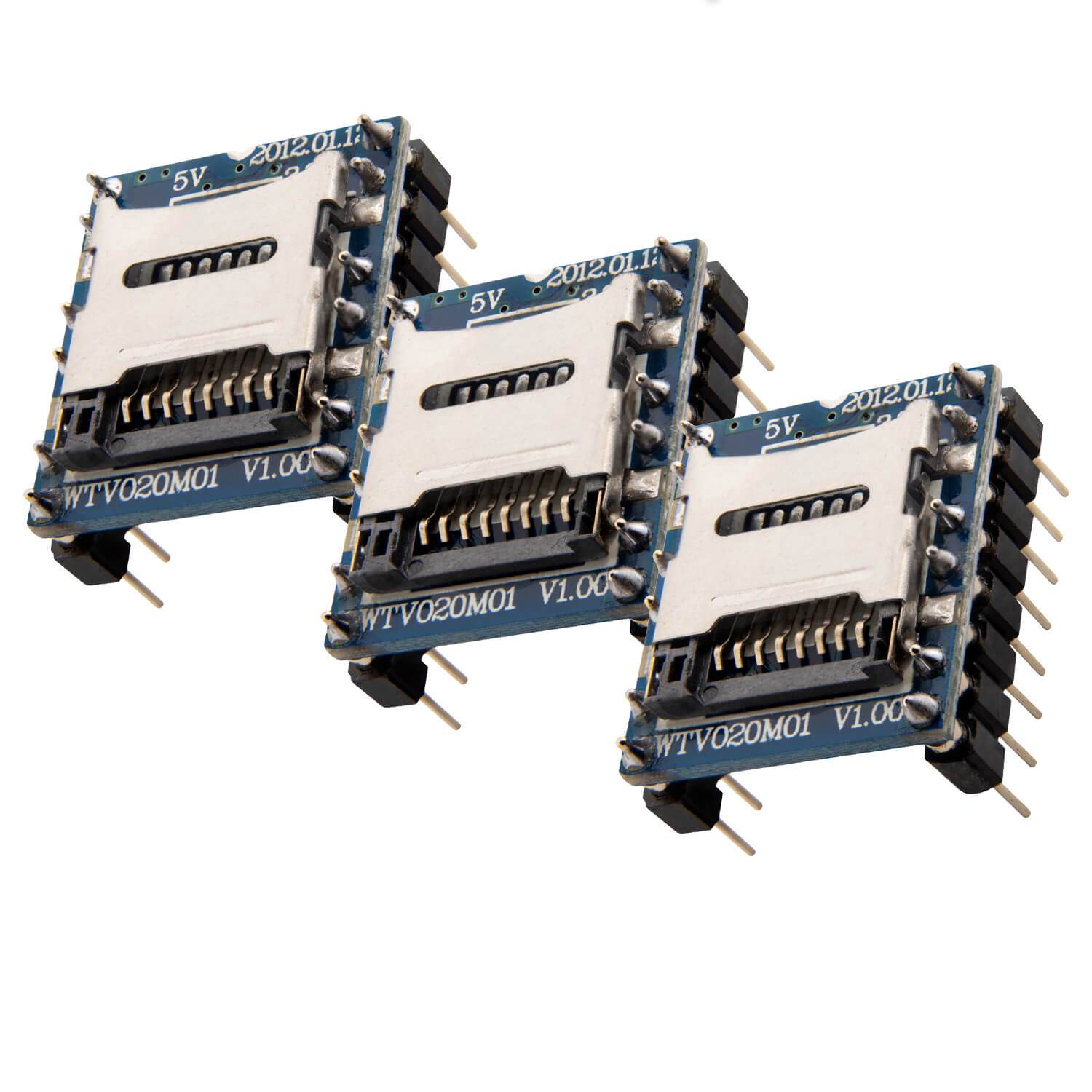

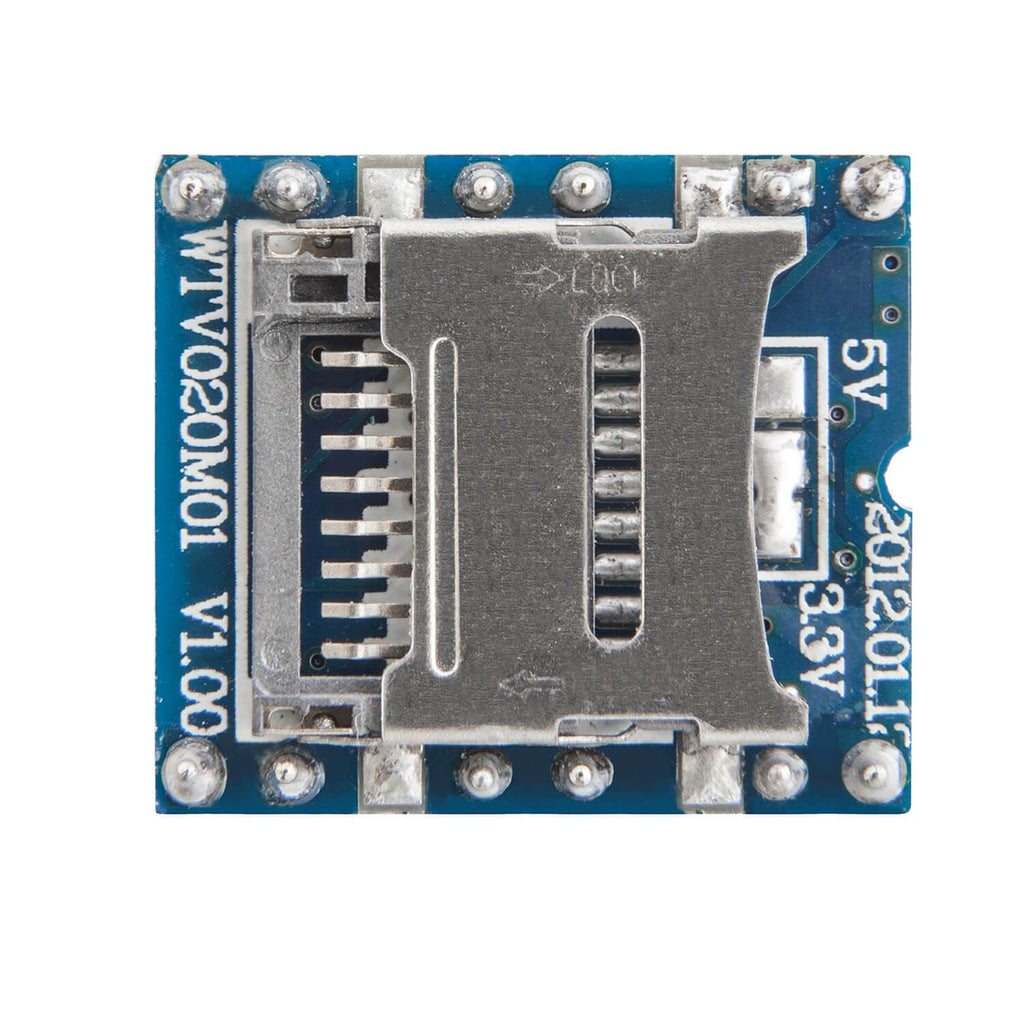

- ✔️ AZ-Delivery WTV020 Audio Module MP3 Player With MicroSD Card Reader for Arduino is handy module for playing audio files with support of MP3, 4Bit ADCPM formats, with Sampling Rate form 6 KHz to 36 KHz for AD4 audio, and 6 KHz to 16 KHz for WAV audio.
- ✔️ WTV020 Audio Module has 16 bit DAC and audio PWM output.
- ✔️ AZ-Delivery WTV020 Audio Module MP3 Player With MicroSD Card Reader for Arduino supports file combination play, including mute combination.
- ✔️ WTV020 Audio Module MP3 Player has Quiescent Current of 16uA (when SD card is not inserted).
- ✔️ Welcome to the AZ-Delivery family! For top quality microelectronics, we are your go to. ⭐️⭐️⭐️⭐️⭐️We provide an array of application examples, full installation guides, eBooks, libraries, and all-round assistance. AZ-Delivery, your microelectronics expert.
- weitere Produktdetails
Wichtige Downloads & Links
WTV020 Audio Module can load WAV format voice, and AD4 formats voice.
WTV020-SD module voice chip WTV020SD-20S master core, with MP3 control mode, the key one-to-one control mode (3 voice with the voice two), the power-loop control mode as well as the second-line serial control mode.
AZ-Delivery WTV020 Audio Module MP3 Player With MicroSD Card Reader can be used in automotive electronics applications like anti-theft alarm, parking sensor, GPS navigation systems, electronic dog, central locking, for smart home systema, music player, intelligent transportation devices (toll stations, car parks), communication, industrial control areas (elevators, industrial equipment), and other fields.
